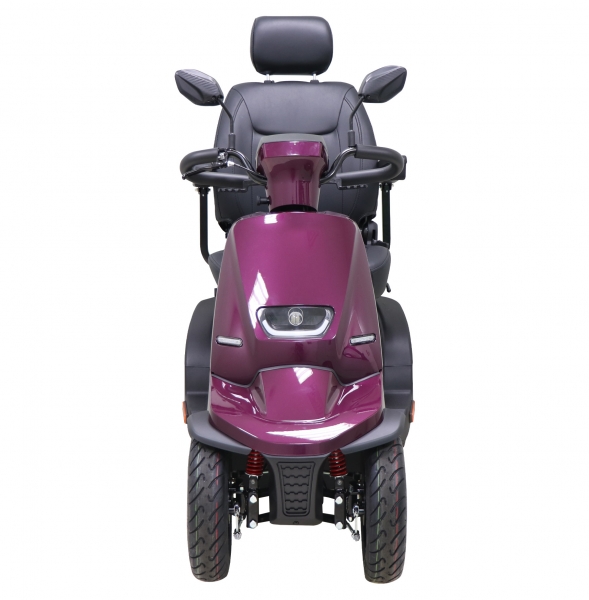

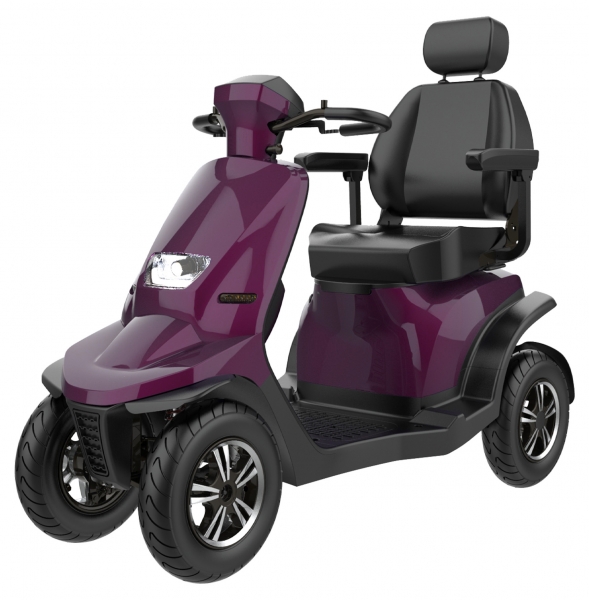

HS-926 Moped Heavy Duty Four Wheeler


Mobility Scooter With 2-Way Cabin
Mobility Scooter With 2-Way Cabin
Mobility Scooter With 2-Way Cabin
  • Maximum Speed : 12.8 kmph / 8 mph
  • Capacity :  143 kgs / 315.3 Ibs
  • LED Display

  • Full LED Lightin

  • 15" Large Wheels

  • Storage Compartment & Bag Hook

  • Separable Frame

Color

Overall Length
1580 mm / 62.2"
Overall Width
690 mm / 27.2"
Overall Height
1380 mm / 54.3"
Front Wheels
370 mm / 15"
Rear Wheels
370 mm / 15"
Weight W / Batteries
143 kgs / 315.3 Ibs
Max. Speed
12.8 kmph / 8 mph
Weight Capacity
180 kgs / 396.8 Ibs
Ground Clearance
80 mm / 3.1"
Grade Climbable
10 degree
Curb Climbable
100 mm / 3.9"
Turning Radius
2200 mm / 86.8"
Suspension
Front & Rear
Brake
Electro-mechanical & Hand Brake
Seat Type
Scooter Seat w/ Angle Adj. Armrests
Seat Width
525 mm / 20.7"
Motor Size
1000W, 5000 r.p.m.
Battery Size
(2) 12V. 75Ah
Weight of Battery Pack
51.5 kgs / 113.5 lbs
Travel Range
60 km / 37.3 mi
Battery Charger
8A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Button
*Subject to change without notice.
