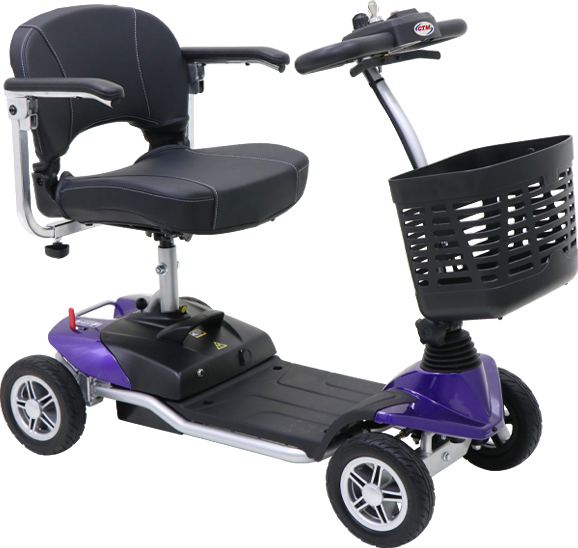

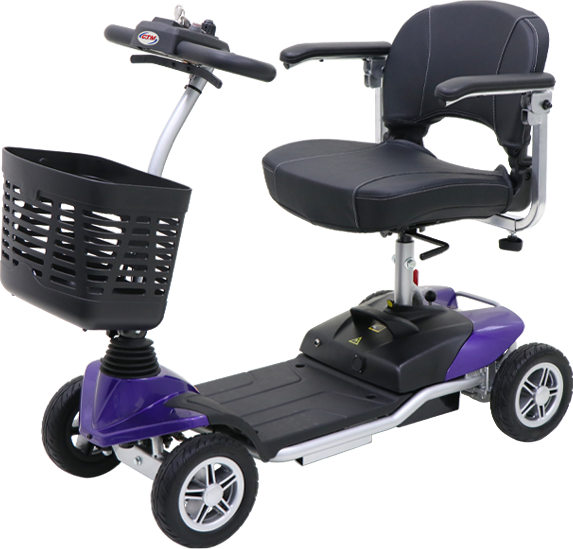

Lithium Lightweight Mobility Scooter HS-118A

Maximum Speed : 6.4 kmph / 4mph
Capacity : 115 kgs / 255 lbs

Lightweight Aluminum Frame
Lithium Battery Pack for Off Board Charging

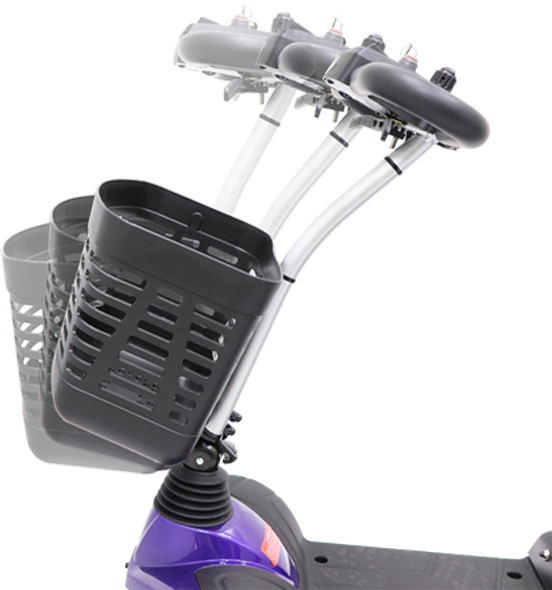

Multi-angle Adj. Tiller
Width Adj. Armrests
Swivel Seat

Color

Features

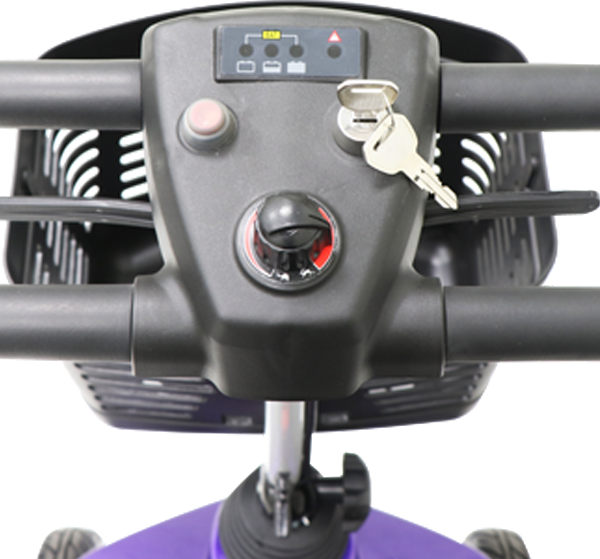

Easy-To-Use Control Panel

Adjustable Steering Bar for various angle positions

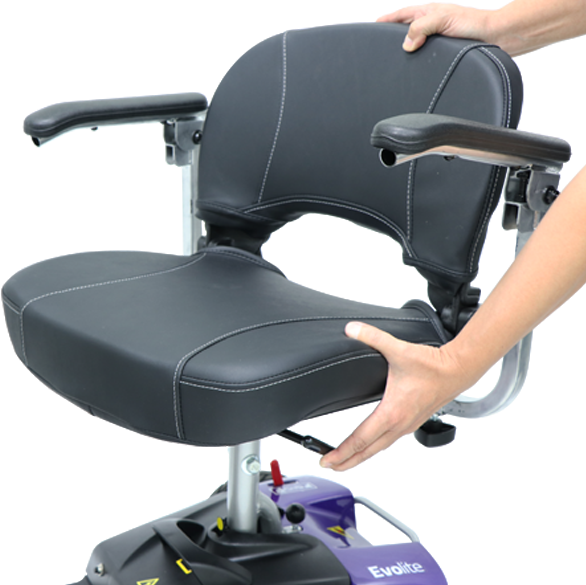

Swivel Padded Seat

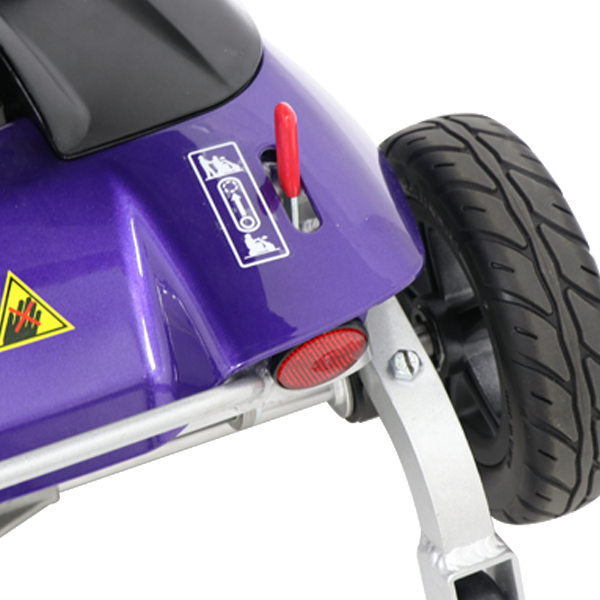

ND Gear Shifting Device

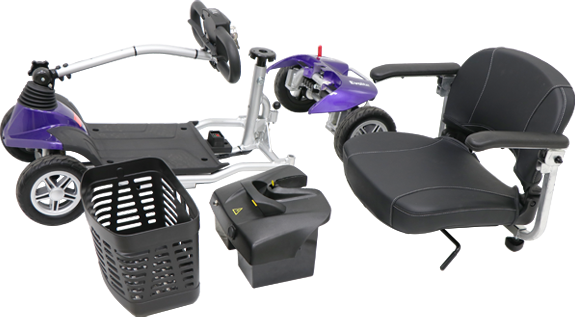

Disassembles into 5 components

SPECIFICATIONS

Overall Length

1010 mm / 39.8"

Overall Width

550 mm / 21.7" (between Armrests)

Overall Height

890 mm / 35"

Front Wheels

195 mm / 8"

Rear Wheels

195 mm / 8"

Weight W / Batteries

31.65 kgs / 69.8 lbs

Max. Speed

6.4 kmph / 4 mph

Weight Capacity

115 kgs / 255 lbs

Ground Clearance

35 mm / 1.4"

Grade Climbable

6 degree

Curb Climbable

40 mm / 1.6"

Turning Radius

1350 mm / 53.1"

Suspension

N/A

Brake

Electro-mechanical

Seat Type

Swivel Padded Foldable

Seat Width

430 mm / 16.9"

Motor Size

250W, 4700 r.p.m.

Battery Size

(1) 25.9V. 11.6Ah

Weight of Battery Pack

4.37 kgs / 9.6 lbs

Travel Range

14 km / 8.7 mi

Battery Charger

2A Off Board

Electronics

On / Off Key Switch, Battery Level Indicator, Speed Control Knob

*Subject to change without notice.

HS-118A Lithium Lightweight Mobility Scooter
