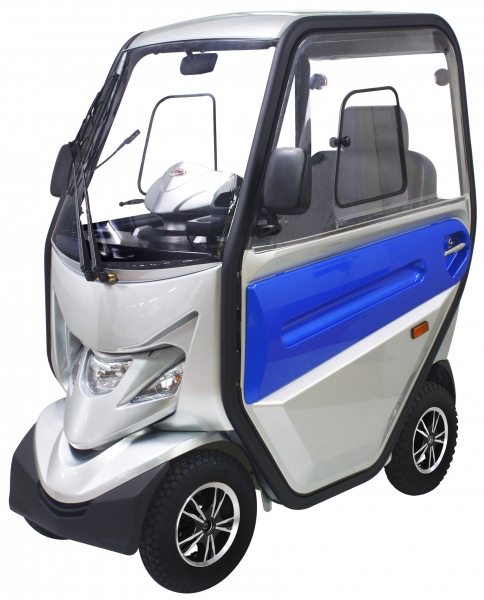

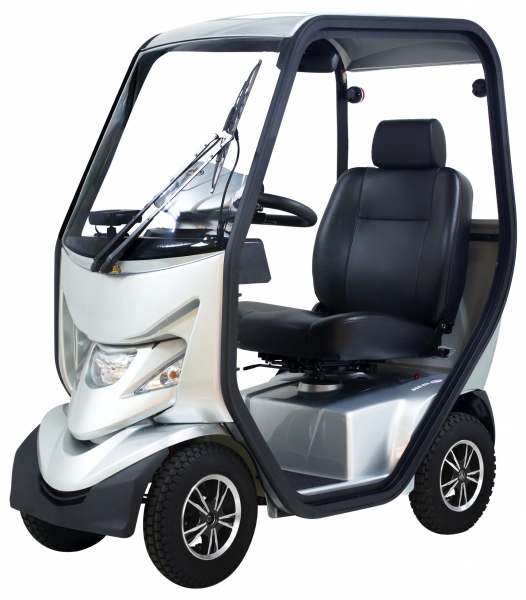

Mobility Scooter With 2-Way Cabin HS-928C

Maximum Speed : 10 kmph / 6.2 mph
Capacity : 200 kgs / 441 Ibs

LCD Display
Double Rearview Mirror & Full Lighting
Standard Delta Handlebar
Tiller Storage Compartment
Two 12V.100Ah Batteries for Longer Travel Range

Color

Features

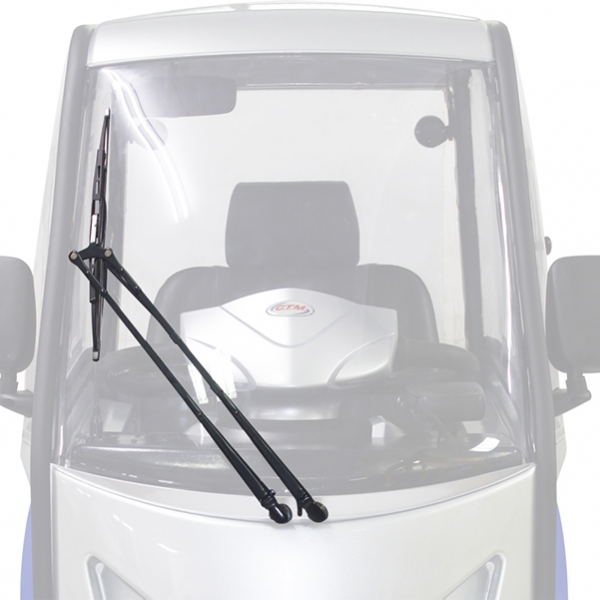

Front Windshield Wiper

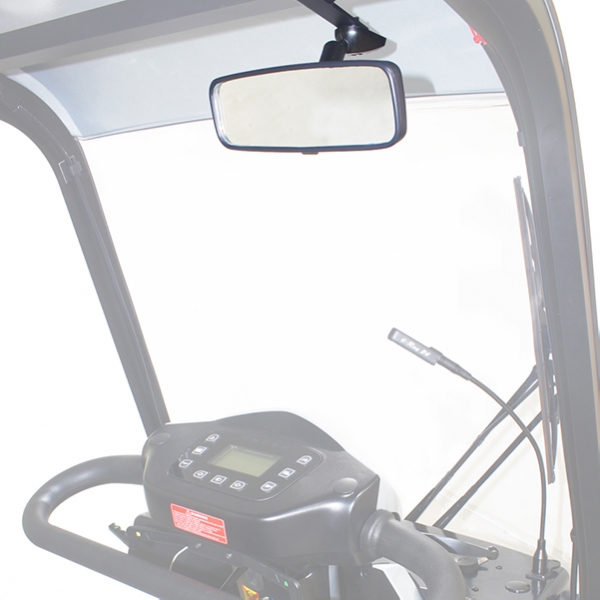

Rear Mirrors

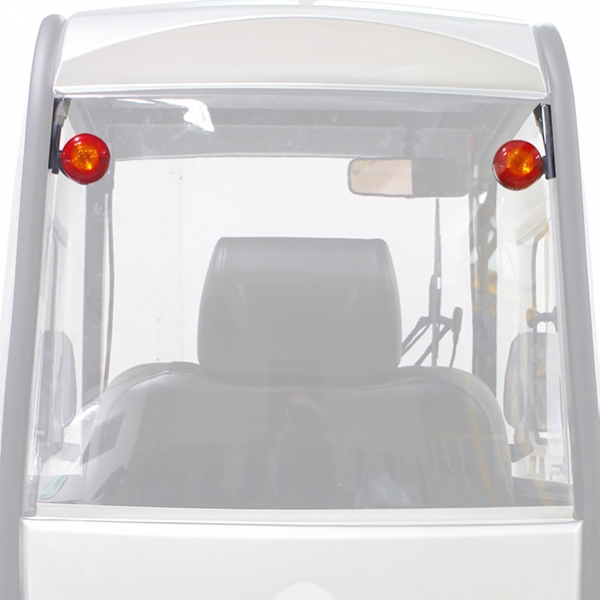

Full Light Control System (Rear Turn Signal)

Standard Delta Handle Bar

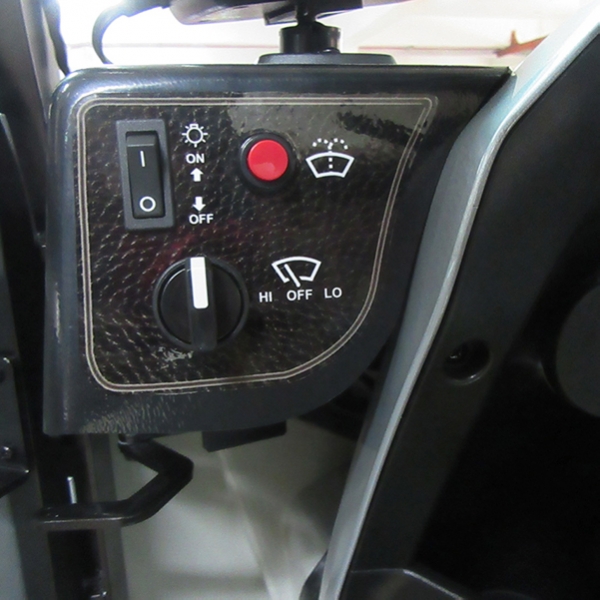

Windshield Wiper

Temperature Panel

SPECIFICATIONS
VIDEO

Overall Length

1600 mm / 63"

Overall Width

1040 mm / 40.9" (Rear Mirror Width)

Overall Height

1620 mm / 63.8"

Front Wheels

380 mm / 15"

Rear Wheels

380 mm / 15"

Weight W / Batteries

229 kgs / 505 Ibs

Max. Speed

10 kmph / 6.2 mph

Weight Capacity

200 kgs / 441 Ibs

Ground Clearance

110 mm / 4.3"

Grade Climbable

10 degree

Curb Climbable

100 mm / 3.9"

Turning Radius

1860 mm / 73.2"

Suspension

Front & Rear

Brake

Hand Brake & Electro-mechanical

Seat Type

Swivel Captain Seat With Seat Sliding Mechanism

Seat Width

559 mm / 22"

Motor Size

1000W, 3200 r.p.m.

Battery Size

(2) 12V. 100Ah

Weight of Battery Pack

65.3 kgs / 144 lbs

Travel Range

44 km / 27 mi

Battery Charger

12A Off Board

Electronics

On / Off Key Switch, Battery Level Indicator, Speed Control Button

*Subject to change without notice.

影音介紹_標題

iframe

HS-928C Mobility Scooter With 2-Way Cabin

Optional Accessories
