Overall Length
1590 mm / 62.6"
Overall Width
690 mm / 27.2"
Overall Height
1275 mm / 50.2"
Front Wheels
370 mm / 15"
Weight W / Batteries
100 kgs / 220 Ibs
Max. Speed
15 kmph / 9.3 mph
Weight Capacity
136 kgs / 300 Ibs
Ground Clearance
105 mm / 4.1"
Grade Climbable
8 - 10 degree
Curb Climbable
100 mm / 3.9"
Turning Radius
1800 mm / 70.9"
Brake
Electro-mechanical & Hand Brake
Seat Type
Scooter Seat w/ Angle Adj. Armrests
Motor Size
700W, 4150 r.p.m. (opt. 750W, 4150 r.p.m.)
Battery Size
(2) 12V. 50Ah
Weight of Battery Pack
30.5 kgs / 67.2 lbs
Travel Range
35 km / 21.7 mi
Battery Charger
5A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Button
*Subject to change without notice.

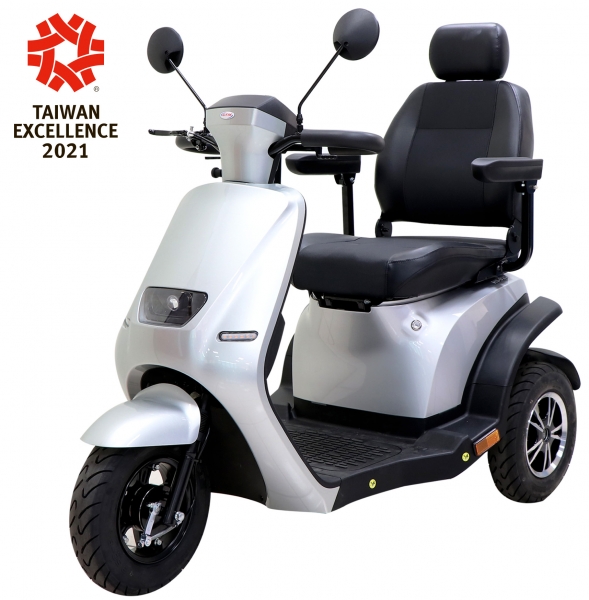

/HS-915(B1).jpg "Mobility Scooter With 2-Way Cabin")

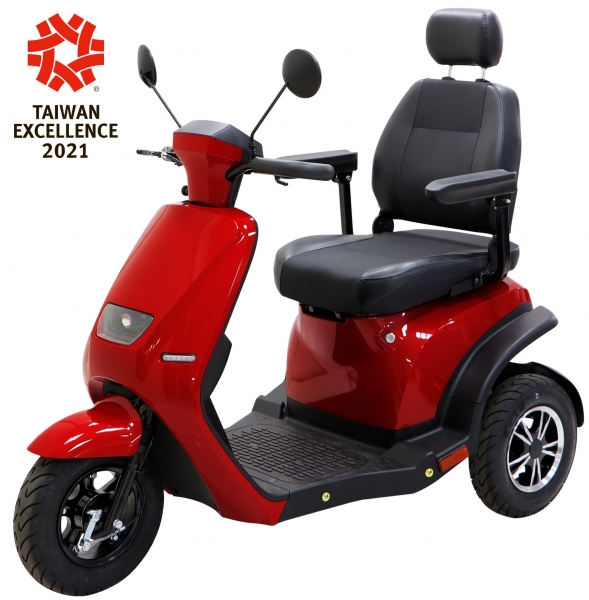

/HS-915(M1).jpg "Mobility Scooter With 2-Way Cabin")
/HS-915(C1).jpg "Mobility Scooter With 2-Way Cabin")
Maximum Speed : 15 kmph / 9.3 mph
Capacity : 136 kgs / 300 Ibs
