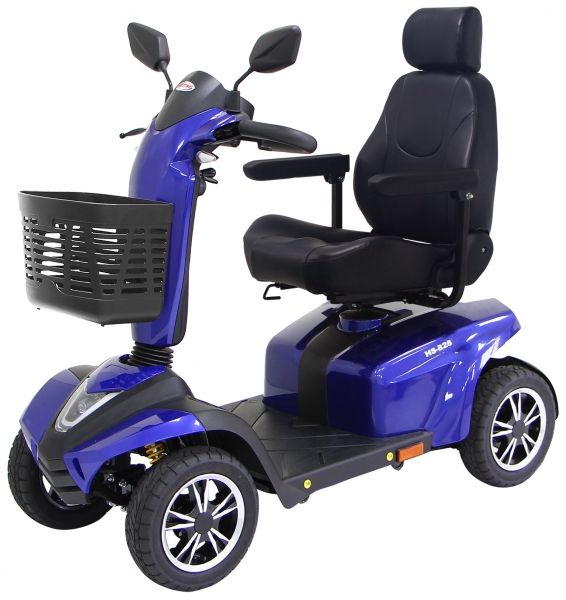

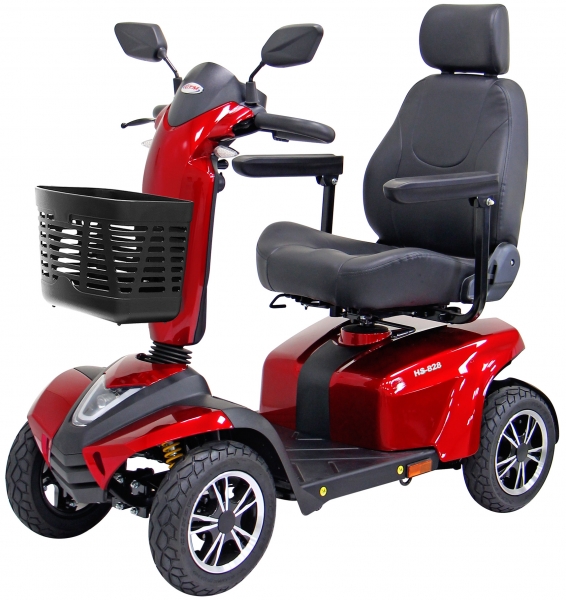

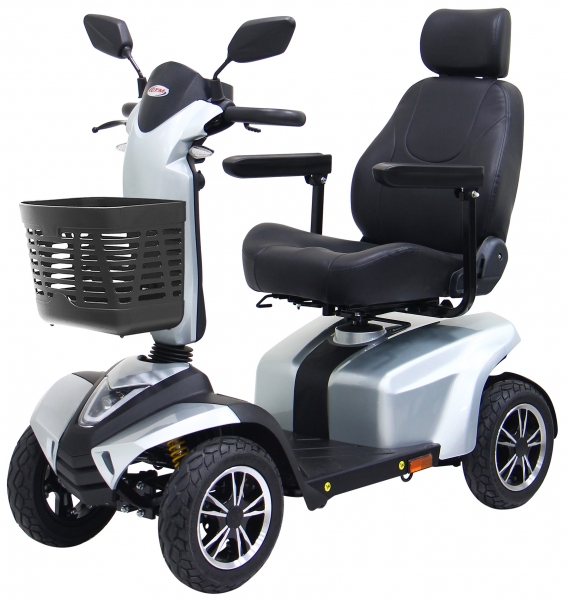

HS-828 Upgrade Road Class Four Wheel Mobility Scooter
.jpg "Heavy Duty Three Wheel Mobility Scooter")
.jpg "Heavy Duty Three Wheel Mobility Scooter")
.jpg "Heavy Duty Three Wheel Mobility Scooter")
Maximum Speed : 15 kmph / 9.3 mph
Capacity : 160 kgs / 350 lbs
-
‧LCD Display
- 13" Low Profile Tire w/ 8" Rim
-
LED Full Lighting System including Daytime Running Light
-
Separable Frame
-
Optional Speed Reduction while Turning
Color
Features
Easy-To-Use Control Panel
Hand Brake Device
Standard LED Headlights
Armrests with adjustable height
Adjustable front and rear Seat
Revolving Tilting Seat
Overall Length
1400 mm / 55.1"
Overall Width
680 mm / 26.8"
Overall Height
1325 mm / 52.2"
Front Wheels
330 mm / 13"
Rear Wheels
330 mm / 13"
Weight W / Batteries
124 kgs / 272 Ibs
Max. Speed
15 kmph / 9.3 mph
Weight Capacity
160 kgs / 352.7 Ibs
Ground Clearance
90 mm / 3.5"
Grade Climbable
10 degree
Curb Climbable
100 mm / 3.9"
Turning Radius
1660 mm / 65.4"
Suspension
Front & Rear
Brake
Hand Brake & Electro-mechanical
Seat Type
Swivel Captain Seat With Seat Sliding Mechanism & Back Angle Adjustment
Seat Width
515 mm / 20.3"
Motor Size
850W, 5000 r.p.m.
Battery Size
(2) 12V. 50Ah
Weight of Battery Pack
30.5 kgs / 67.2 lbs
Travel Range
27 km / 16.8 mi
Battery Charger
5A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Button
*Subject to change without notice.
