Overall Length
1040 mm / 41"
Overall Width
580 mm / 23"
Overall Height
920 mm / 36"
Weight W / Batteries
74 kgs / 163 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
136 kgs / 300 lbs
Ground Clearance
100 mm / 4"
Curb Climbable
43 mm / 1.7"
Turning Radius
920 mm / 36"
Seat Type
Padded Breathable Ballistic Nylon Back Rest W/ Adjustable Back Angle & Seat Belt
Seat Depth
410 ~ 460 mm / 16" ~ 18"
Armrest Height
210 ~ 255 mm / 8 1/4" ~ 10"
Seat Back Angle
98° or 108° or 118°
Seat Back Height
410 ~ 510 mm / 16" ~ 20"
Tilting Angle
3 ~ 10 degree
Seat Width
360mm / 14" | 407 ~ 510 mm / 16" ~ 20"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m.
Battery Size
(2) 12V. 36Ah (50Ah Option)
Weight of Battery
23 kgs / 50.7 lbs
Travel Range
16 km / 10 mi
Battery Charger
5A Off Board
*Subject to change without notice.

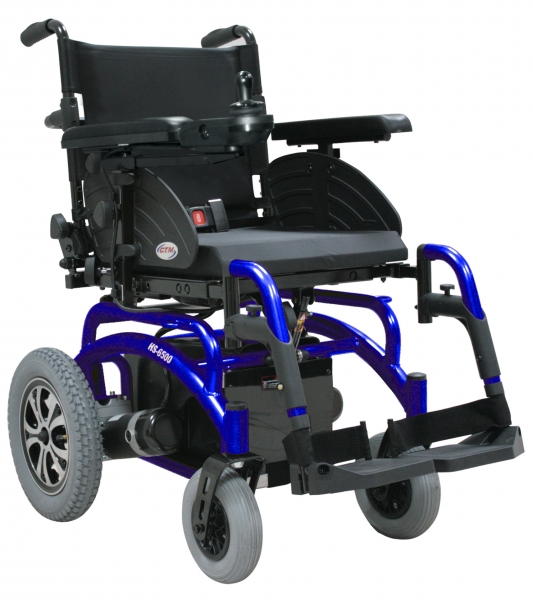

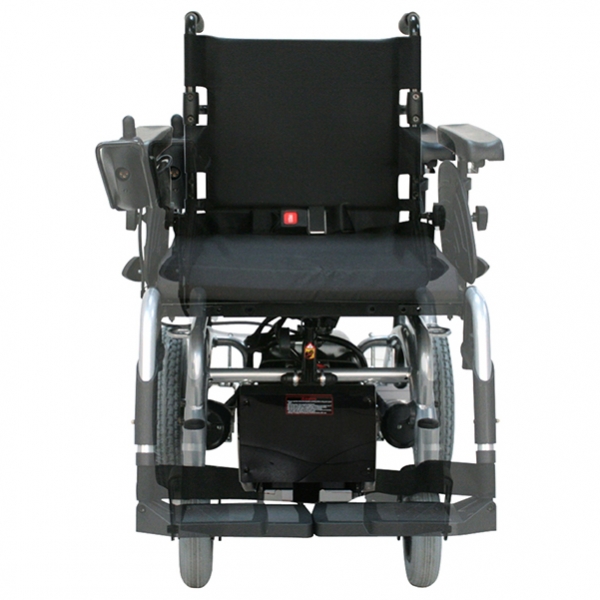

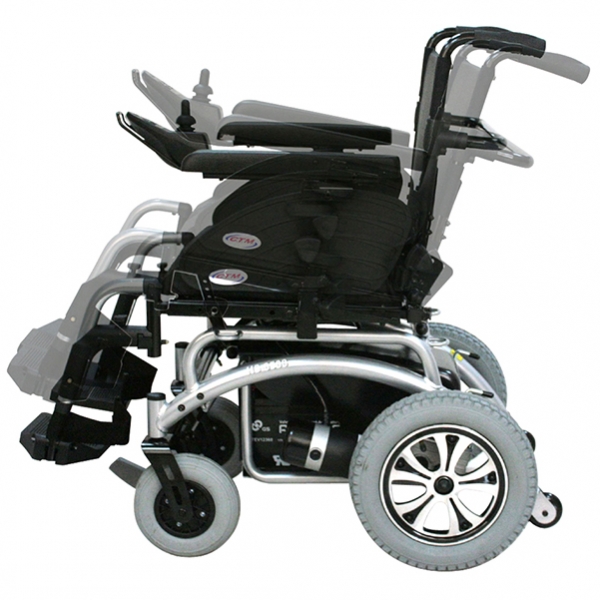

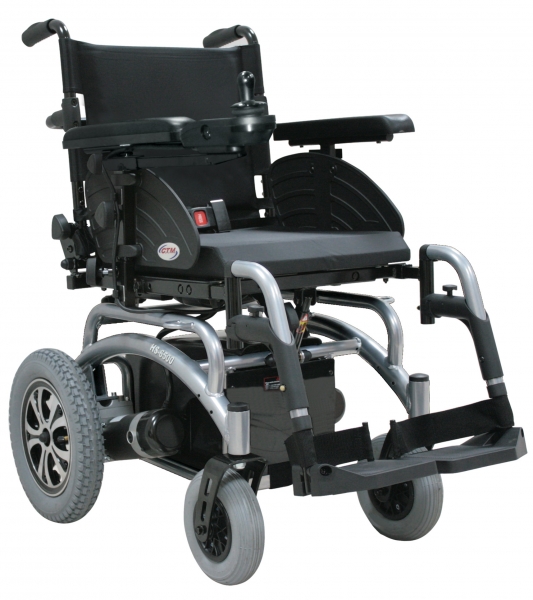

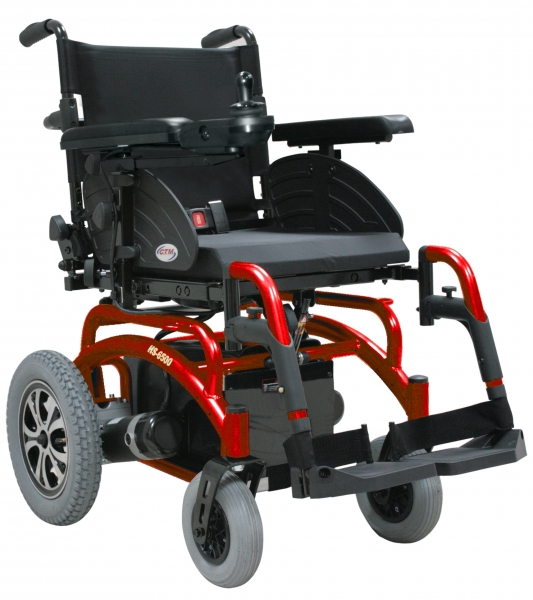

.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")
.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")
.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")
Maximum Speed : 8 kmph / 5 mph
Capacity : 136 kgs / 300 lbs
