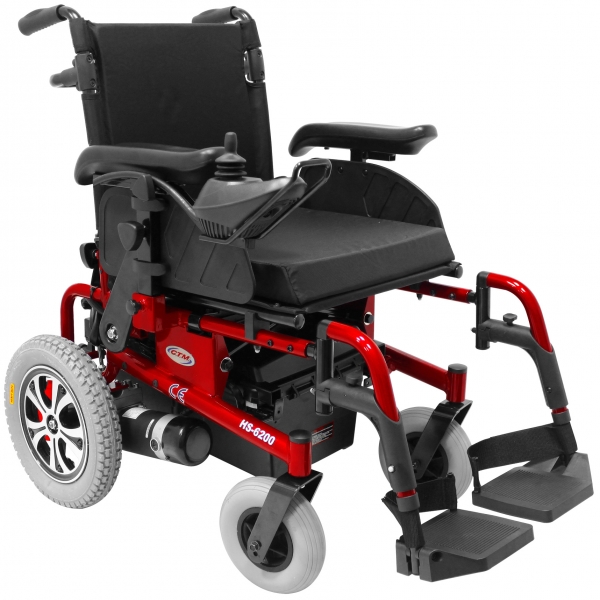

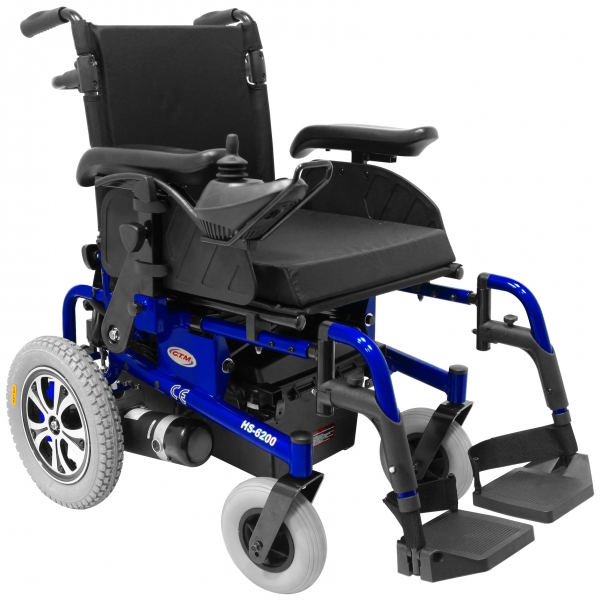

HS-6200 Folding Power Chair
.jpg "Folding Power Chair")
.jpg "Folding Power Chair")
.jpg "Folding Power Chair")
Maximum Speed : 8 kmph / 5 mph
Capacity : 127 kgs / 280 lbs
-
Left / Right Exchangeable & Length Adjustable Joystick
-
Height Adjustable And Flip Up Armrests
-
Drop-in Battery Boxes
-
Optional 50Ah Batteries
Color
Features
Left / Right Switchable Joystick
Foldable Structure
Adjustable Footrests
Draw-Out Battery Box
Overall Length
1075 mm / 42.3"
Overall Width
650 mm / 26" (Armrest Width)
Overall Height
900 mm / 35.4"
Front Wheels
190 mm / 7.4"
Middle Wheels
N/A
Rear Wheels
320 mm / 13"
Weight W / Batteries
70.9 kgs / 156.3 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
127 kgs / 280 lbs
Ground Clearance
46 mm / 1.8"
Grade Climbable
10 degree
Curb Climbable
43 mm / 1.7"
Turning Radius
980 mm / 38.6"
Suspension
N/A
Brake
Electro-mechanical
Seat Type
Padded Breathable Ballistic Nylon Back Rest W/ Adjustable Back Angle & Seat Belt
Seat Depth
440 mm / 17.3"
Armrest Height
230 mm / 9"
Seat Back Angle
93 degree
Seat Back Height
440 mm / 17.3"
Seat Width
457 mm / 18"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m
Battery Size
(2) 12V. 36Ah
Weight of Battery
25.5 kgs / 56.2 lbs
Travel Range
19 km / 12 mi
Battery Charger
5A Off Board
*Subject to change without notice.
影音介紹_標題
iframe
Optional Accessories
