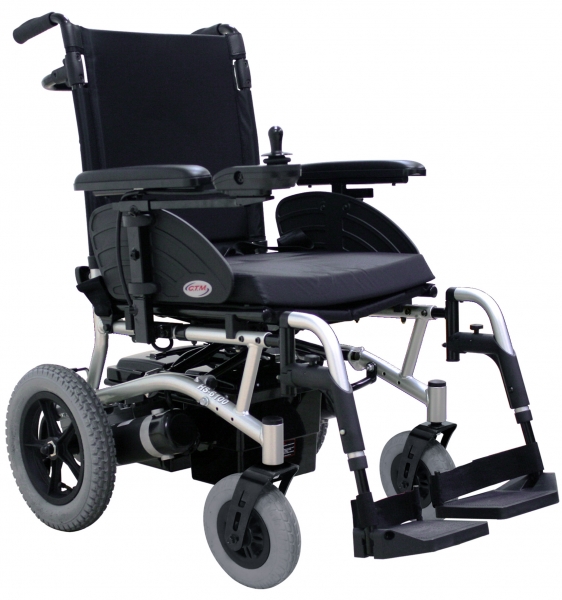

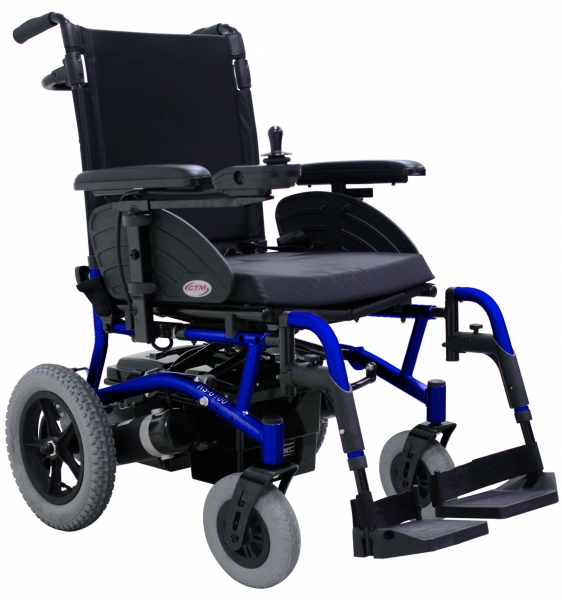

HS-6100-36Ah Low Maintenance Folding Power Chair
/HS-6100(M).jpg "Low Maintenance Folding Power Chair")
/HS-6100(B).jpg "Low Maintenance Folding Power Chair")
/HS-6100(C).jpg "Low Maintenance Folding Power Chair")
Maximum Speed : 8 kmph / 5 mph
Capacity : 136 kgs / 300 lbs
-
Drop-in Battery Boxes
-
Optional Swing-away Joystick
Color
Features
/image01.jpg "摺疊式後輪驅動輪椅")

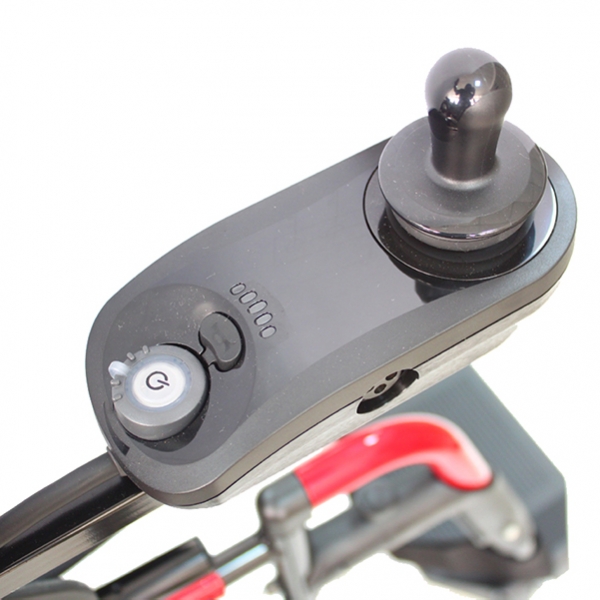

LED Smart Joystick
/image02.jpg "摺疊式後輪驅動輪椅")

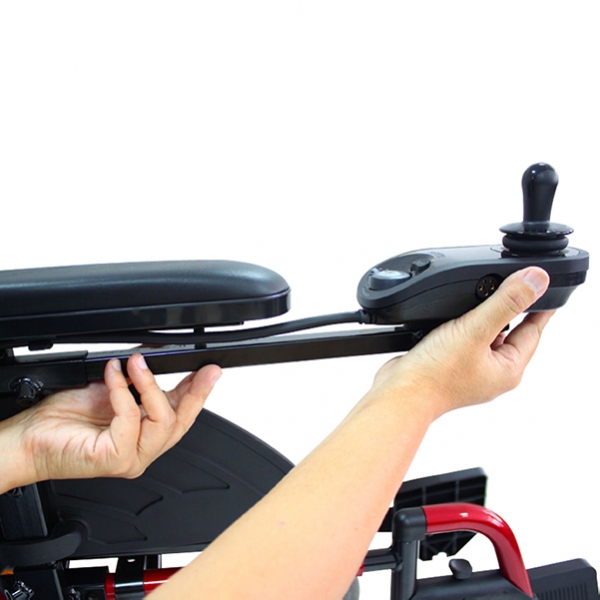

Front / Back Adjustable Joystick
/image03.jpg "摺疊式後輪驅動輪椅")

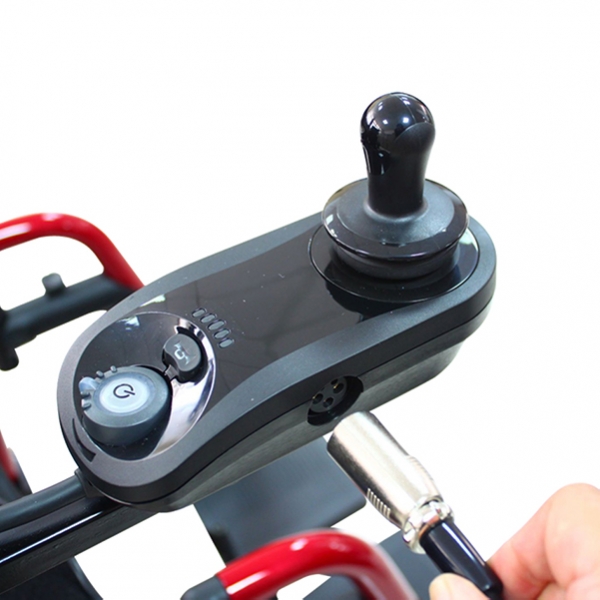

Direct Charging Device
/image04.jpg "摺疊式後輪驅動輪椅")

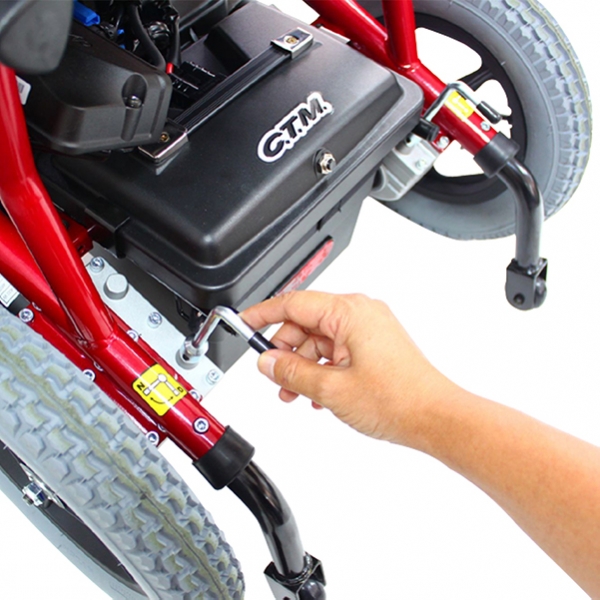

ND Gear Shifting Device
/image05.jpg "摺疊式後輪驅動輪椅")

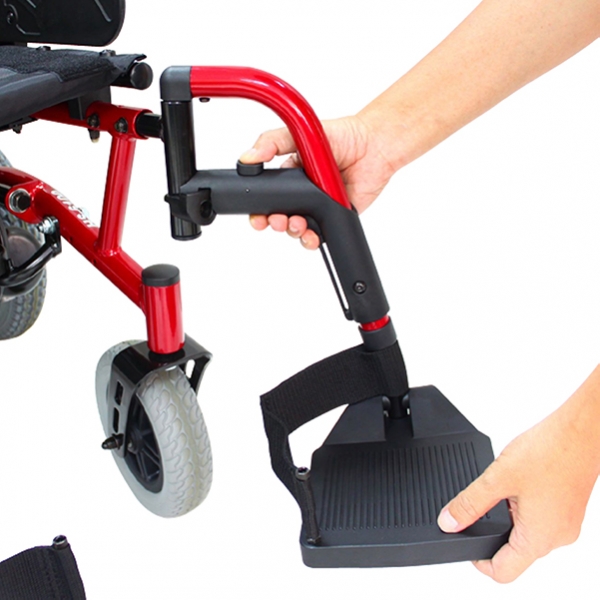

Adjustable Footrests
Overall Length
1040 mm / 41"
Overall Width
595 mm / 23.4" | 645 mm / 25.4" | 645 mm / 25.4"
Overall Height
990 mm / 40"
Front Wheels
200 mm / 7.9"
Middle Wheels
N/A
Rear Wheels
320 mm / 13"
Weight W / Batteries
63.2 kgs / 139.3 lbs | 63.5 kgs / 140 lbs | 65 kgs / 143.5 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
136 kgs / 300 lbs | 136 kgs / 300 lbs | 145 kgs / 320 lbs
Ground Clearance
80 mm / 3.2"
Grade Climbable
8 degree
Curb Climbable
25 mm / 1"
Turning Radius
850 mm / 33.5"
Suspension
N/A
Brake
Electro-mechanical
Seat Type
Padded Breathable Ballistic Nylon Back Rest W/ Adjustable Back Angle & Seat Belt
Seat Depth
400 mm / 15.6"
Armrest Height
190 mm / 7.5"
Seat Back Angle
100 degree
Seat Back Height
470 mm / 18.5"
Seat Width
410 mm / 16" | 460 mm / 18" | 510 mm / 20"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m.
Battery Size
(2) 12V. 36Ah
Weight of Battery
25 kgs / 55 lbs
Travel Range
19 km / 12 mi
Battery Charger
5A Off Board
*Subject to change without notice.
Optional Accessories
