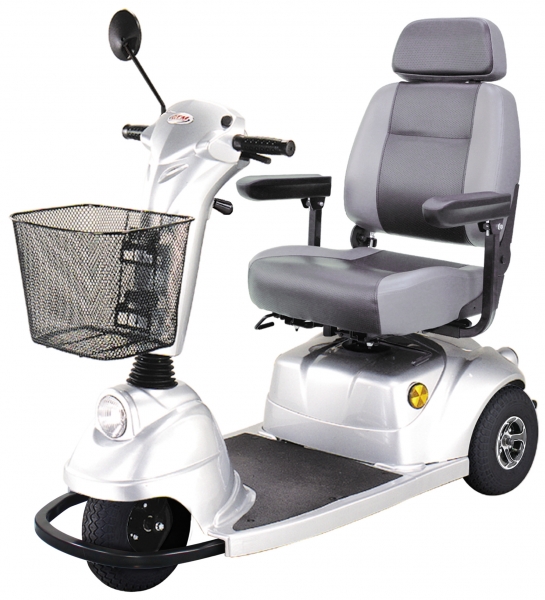

HS-575 New Style Mid-Range Three Wheel Mobility Scooter
.jpg "New Style Mid-Range Three Wheel Mobility Scooter")
Maximum Speed : 8 kmph / 5 mph
Capacity : 135 kgs / 300 lbs
-
Rearview Mirror & Headlight
-
Separable Frame
Color
Features

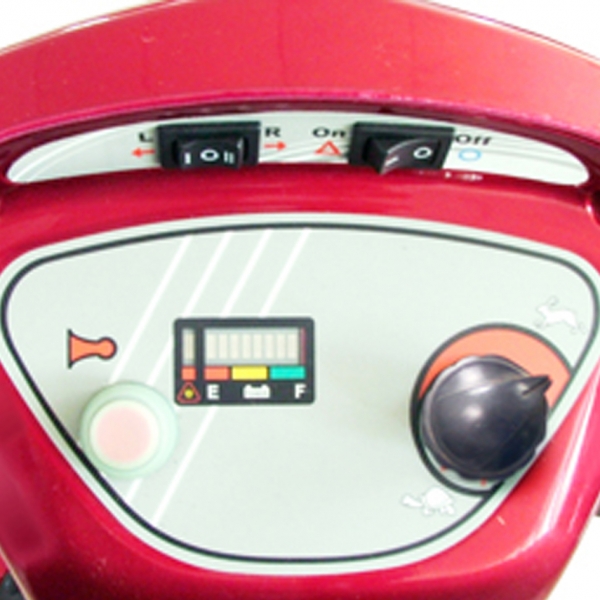

Easy-To-Use Control Panel

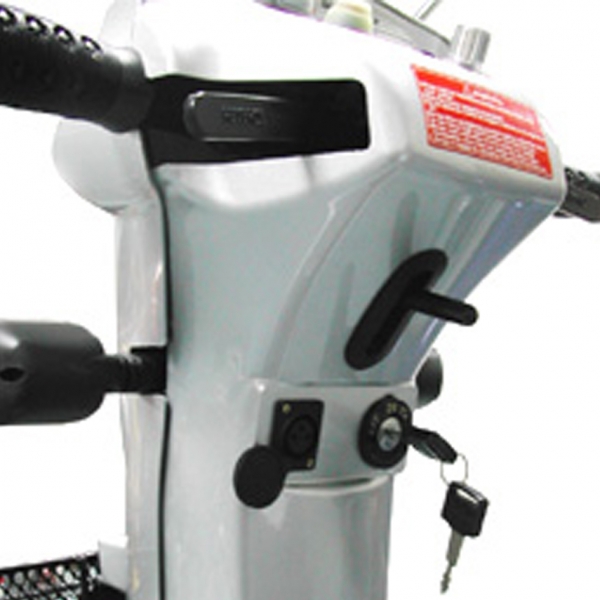

Multi-Angle Adjustable Steering

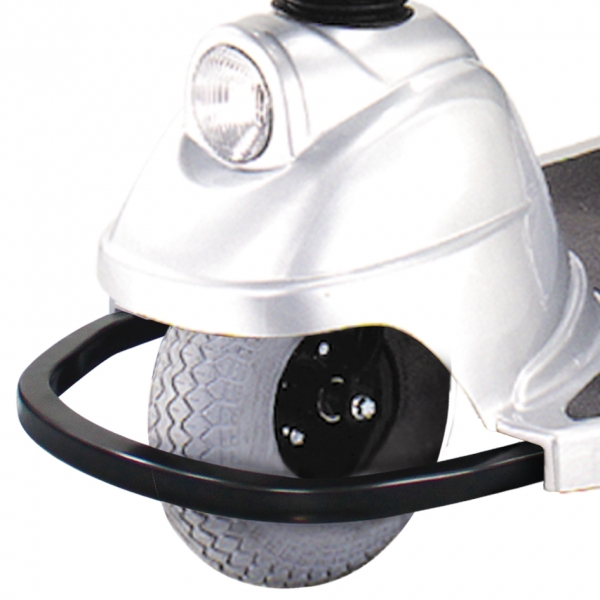

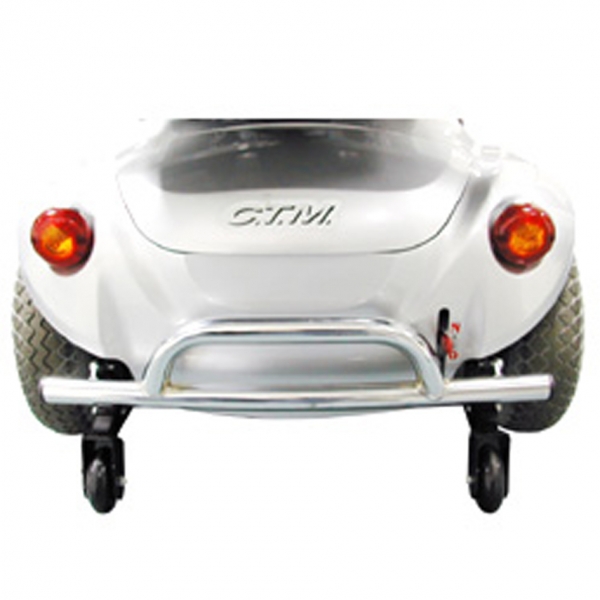

Front & Rear Bumpers

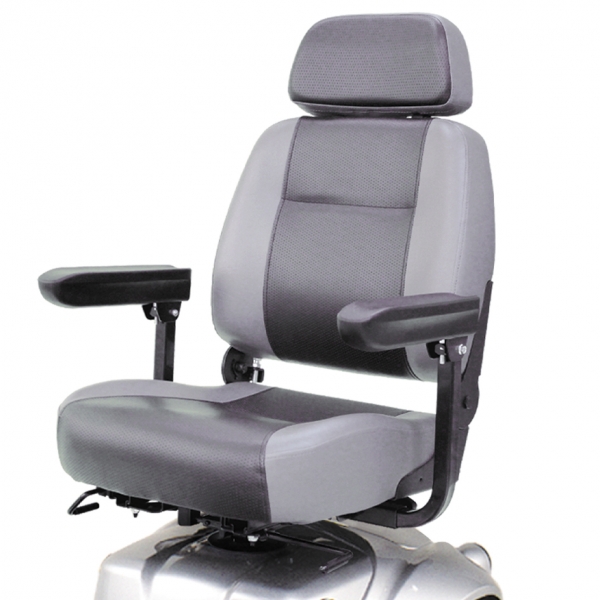

Revolving Seat
ND Gear Shifting Device
Overall Length
1300 mm / 51.2"
Overall Width
610 mm / 24"
Overall Height
1110 mm / 43.7"
Front Wheels
260 mm / 10"
Rear Wheels
260 mm / 10"
Weight W/ Batteries
83.2 kgs / 183.4 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
135 kgs / 300 lbs
Ground Clearance
40 mm / 1.6"
Grade Climbable
12 degree
Curb Climbable
80 mm / 3.2"
Turning Radius
1230 mm / 48.4"
Suspension
N/A
Brake
Electro-mechanical
Seat Type
Swivel Mid-back W/ Headrest & Seat Sliding Mechanism
Seat Width
455 mm / 18"
Motor Size
500W, 3400 r.p.m.
Battery Size
(2) 12V. 36Ah
Weight of Battery Pack
22.5 kgs / 49.6 lbs
Travel Range
34 km / 21 mi
Battery Charger
5A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Knob
*Subject to change without notice.
Optional Accessories
