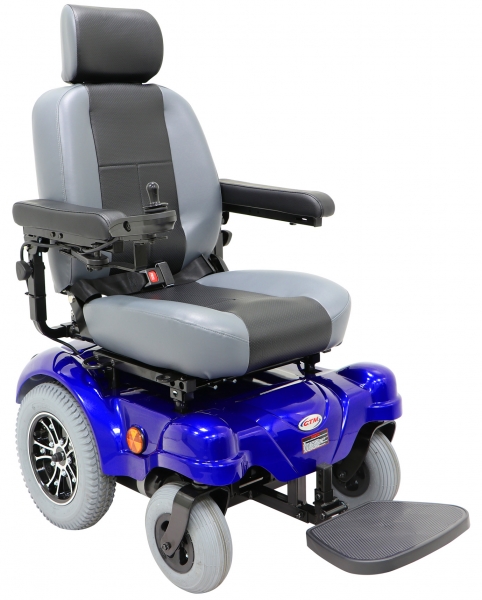

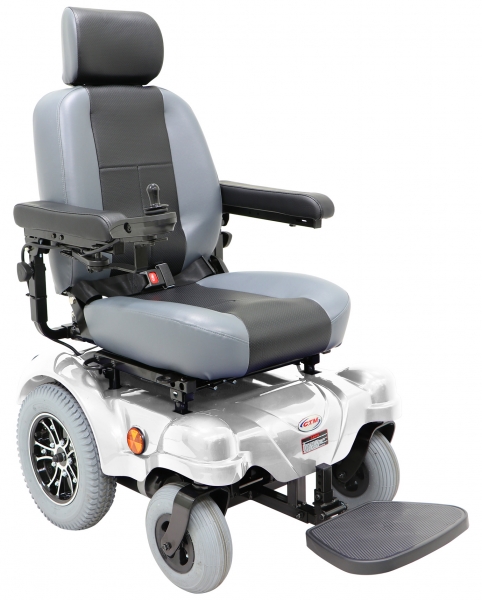

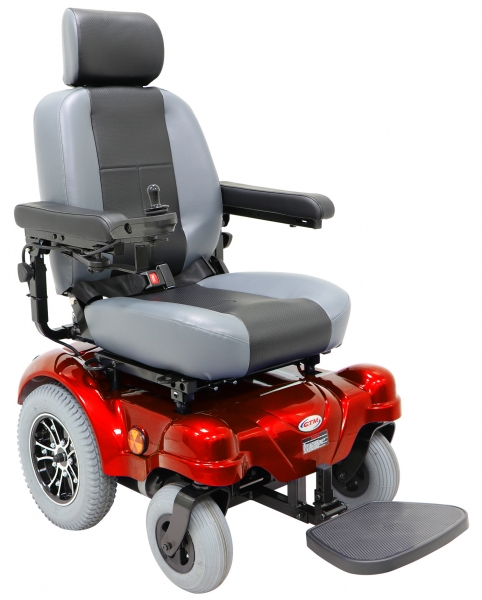

HS-5600 Heavy Duty Rear-Wheel Drive Power Chair
.jpg "Heavy Duty Rear-Wheel Drive Power Chair")
.jpg "Heavy Duty Rear-Wheel Drive Power Chair")
.jpg "Heavy Duty Rear-Wheel Drive Power Chair")
Maximum Speed : 8 kmph / 5 mph
Capacity : 181 kgs / 400 lbs
-
Swing-away Joystick
-
Effortless Single Free Wheel Lever
-
Vertical Adjustable Footplate
-
Optional Elevating Legrests
Color
Features
LED Smart Joystick
Patent Joystick Retraction Mechanism
ND Gear Shifting Device Below Seat
Rear Suspension System
Auto Power Off Mechanism
Tool-Free Quick Release System
Overall Length
1135 mm / 44.7"
Overall Width
635 mm / 25"
Overall Height
1185 mm / 46.7"
Front Wheels
230 mm / 9"
Middle Wheels
N/A
Rear Wheels
360 mm / 14"
Weight W/ Batteries
102 kgs / 224 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
181 kgs / 400 lbs
Ground Clearance
85 mm / 3.4"
Grade Climbable
8 degree
Curb Climbable
60 mm / 2.4"
Turning Radius
790 mm / 31.1"
Suspension
Rear
Brake
Electro-mechanical
Seat Type
Captain Seat, Adjustable Seat Height, & Seat Belt
Seat Depth
510 mm / 20"
Armrest Height
220 mm / 8.7"
Seat Back Angle
90 ~ 99.5 degree
Seat Back Height
685 mm / 27"
Seat Width
500 mm / 20"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m
Battery Size
(2) 12V. 50Ah
Weight of Battery
30.5 kgs / 67.2 lbs
Travel Range
24 km / 15 mi
Battery Charger
5A Off Board
*Subject to change without notice.
影音介紹_標題
iframe
Optional Accessories
