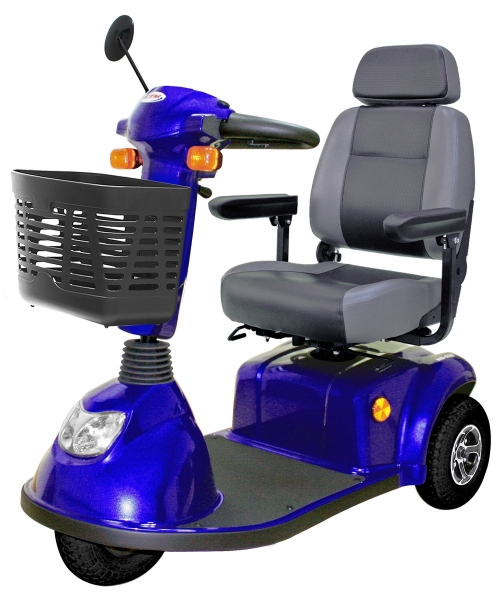

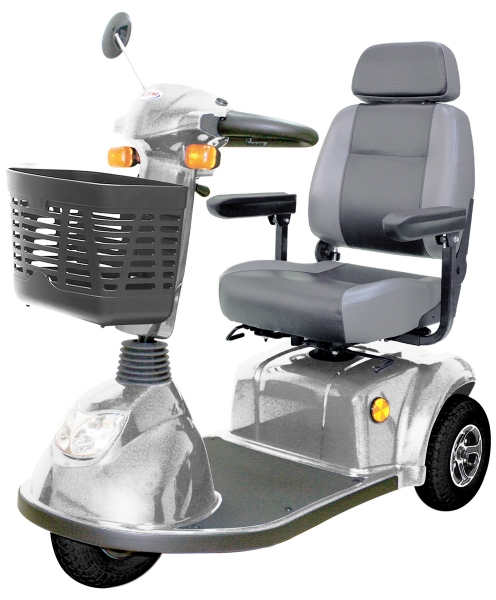

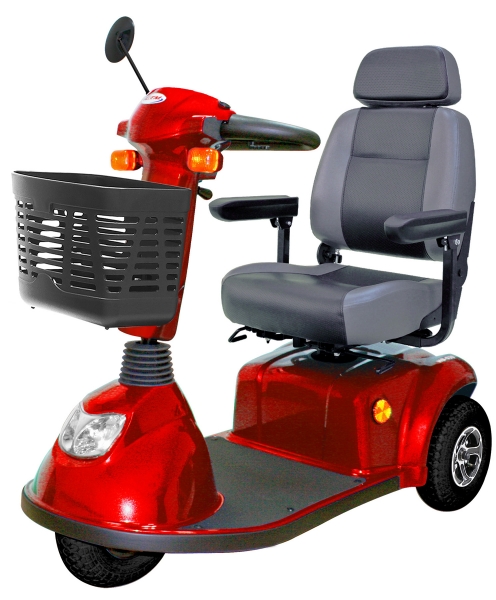

HS-539 Compact Road Class Three Wheel Mobility Scooter
.jpg "Compact Road Class Three Wheel Mobility Scooter")
.jpg "Compact Road Class Three Wheel Mobility Scooter")
.jpg "Compact Road Class Three Wheel Mobility Scooter")
Maximum Speed : 12 kmph / 7.5 mph
Weight Capacity : 135 kgs / 300 lbs
-
Standard Delta Handlebar
-
Rearview Mirror & Full Lighting
-

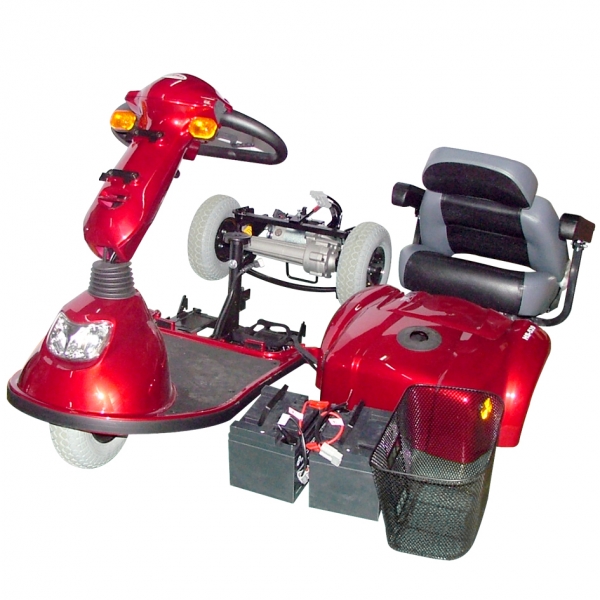

Separable Frame
Color
Features

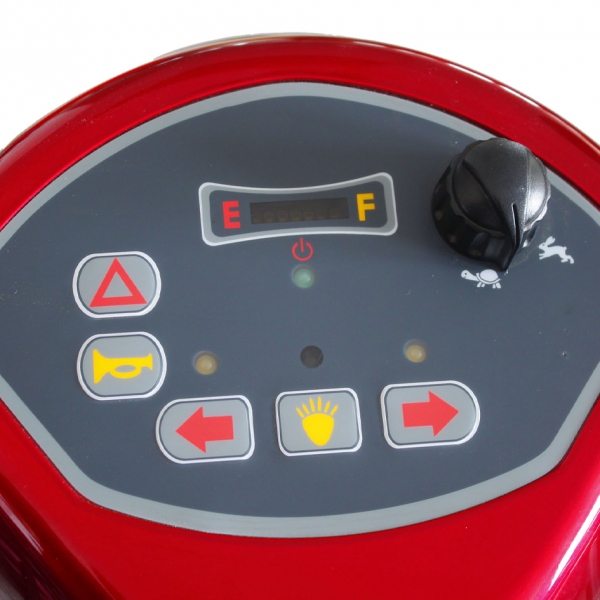

Easy-To-Use Control Panel
Multi-Angle Adjustable Steering

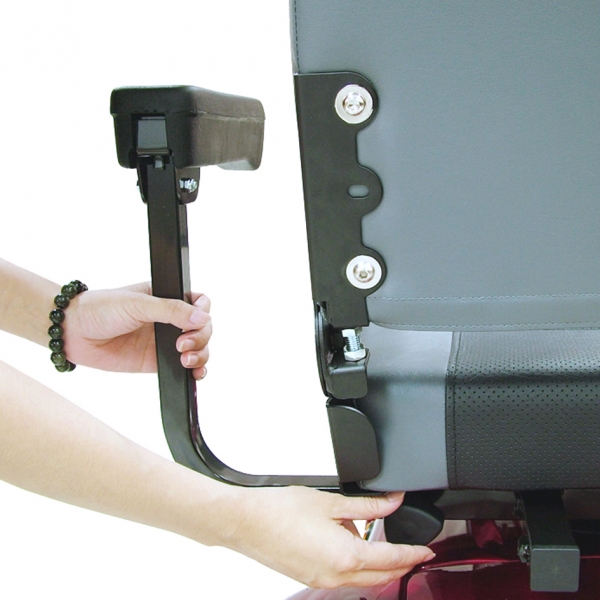

Adjustable Armrests
ND Gear Shifting Device
Tool-Free Quick Release System
Overall Length
1210 mm / 47.6"
Overall Width
625 mm / 24.6"
Overall Height
1160 mm / 45.6"
Front Wheels
290 mm / 11"
Rear Wheels
290 mm / 11"
Weight W/ Batteries
93.48 kgs / 206 lbs
Max. Speed
12 kmph / 7.5 mph
Weight Capacity
135 kgs / 300 lbs
Ground Clearance
60 mm / 2.4"
Grade Climbable
12 degree
Curb Climbable
80 mm / 3.15"
Turning Radius
1110 mm / 43.7"
Suspension
Front & Rear
Brake
Electro-mechanical
Seat Type
Swivel Mid-back W/ Headrest & Seat Sliding Mechanism
Seat Width
455 mm / 18"
Motor Size
700W, 5900 r.p.m.
Battery Size
(2) 12V. 50Ah
Weight of Battery Pack
30.5 kgs / 67.2 lbs
Travel Range
40 km / 25 mi
Battery Charger
5A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Knob
*Subject to change without notice.
Optional Accessories
