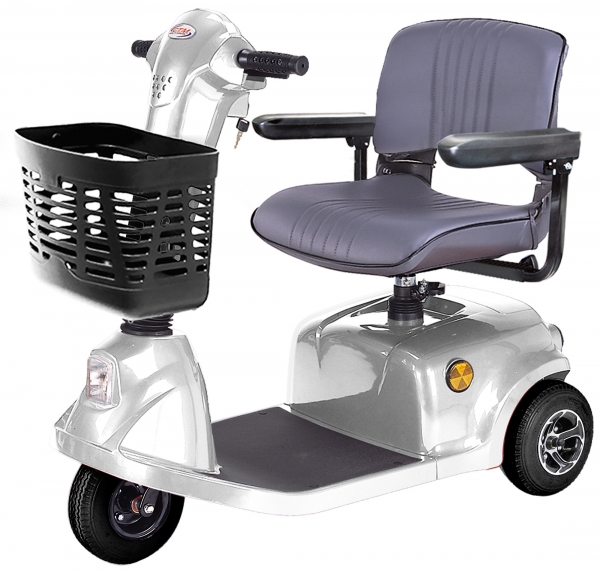

HS-320 Economy Three Wheel Mobility Scooter
.jpg "Economy Three Wheel Mobility Scooter")
.jpg "Economy Three Wheel Mobility Scooter")
.jpg "Economy Three Wheel Mobility Scooter")
Maximum Speed : 8 kmph / 5 mph
Capacity : 135 kgs / 300 lbs
-
Full Tiller Shroud
-
Standard Headlight
-

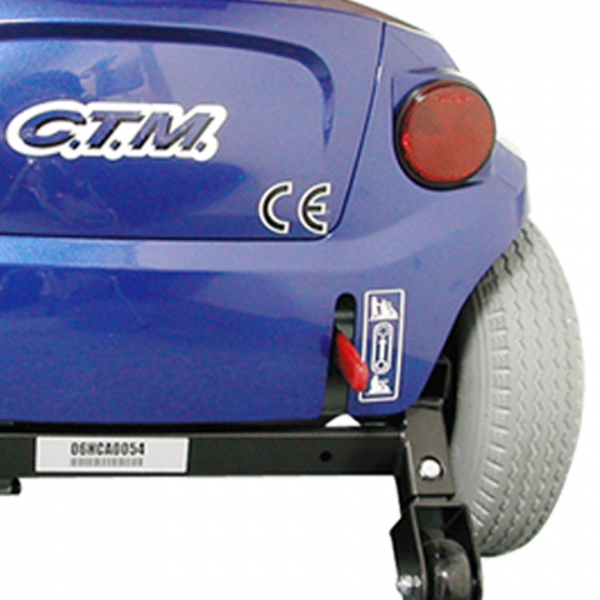

Separable Frame
Color
Features

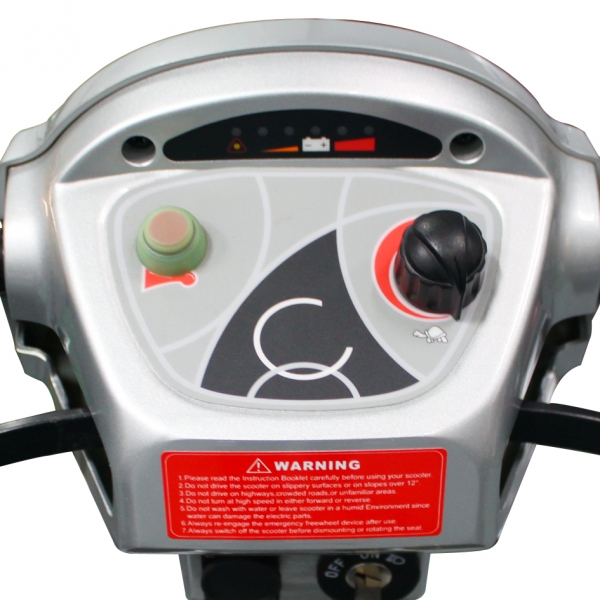

Easy-To-Use Control Panel

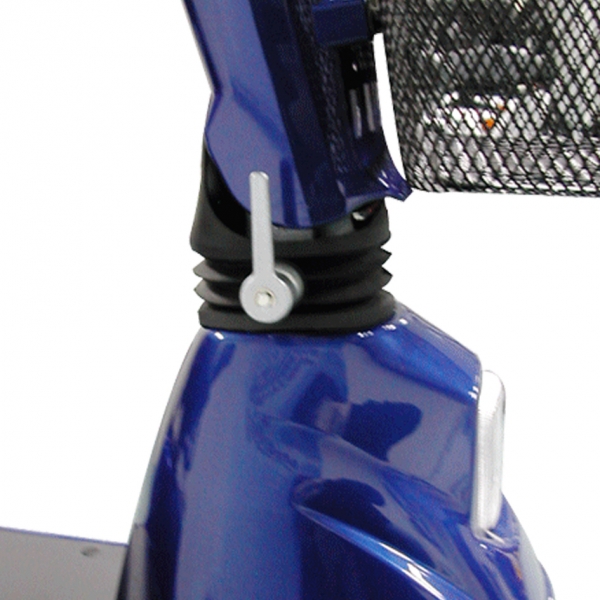

Multi-Angle Adjustable Steering

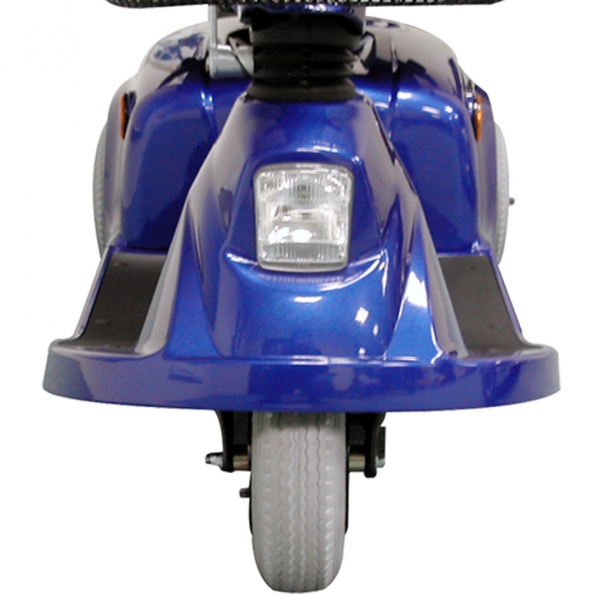

Standard LED Headlights

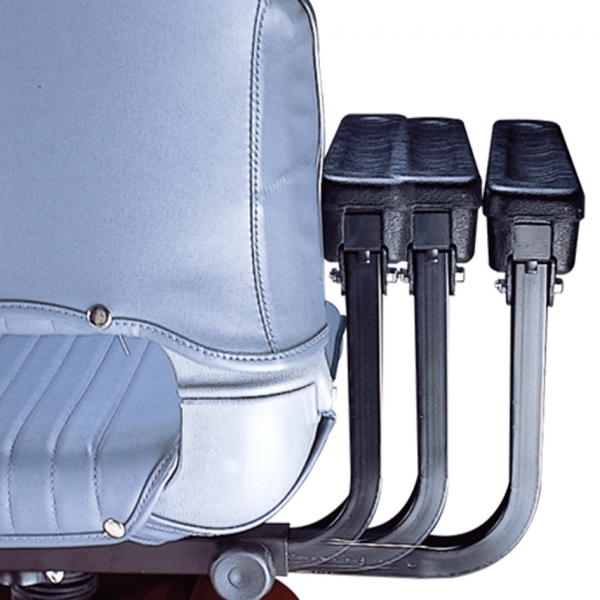

Adjustable Armrests
ND Gear Shifting Device
Overall Length
1090 mm / 42.9"
Overall Width
580 mm / 22.8" (between Armrests)
Overall Height
930 mm / 36.6"
Front Wheels
230 mm / 9"
Rear Wheels
230 mm / 9"
Weight W/ Batteries
53.8 kgs / 118.7 lbs
Max. Speed
8 kmph / 5 mph
Weight Capacity
135 kgs / 300 lbs
Ground Clearance
40 mm / 1.6"
Grade Climbable
12 degree
Curb Climbable
60 mm / 2.4"
Turning Radius
1020 mm / 40.2"
Suspension
N/A
Brake
Electro-mechanical
Seat Type
Swivel Light Weight Foldable
Seat Width
460 mm / 18"
Motor Size
450W, 3700 r.p.m.
Battery Size
(2) 12V. 18Ah
Weight of Battery Pack
12.7 kgs / 28 lbs
Travel Range
13.5 km / 8.4 mi
Battery Charger
2A Off Board
Electronics
On / Off Key Switch, Battery Level Indicator, Speed Control Knob
*Subject to change without notice.
Optional Accessories
