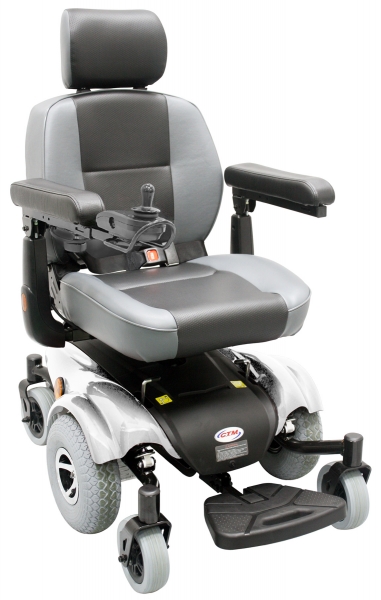

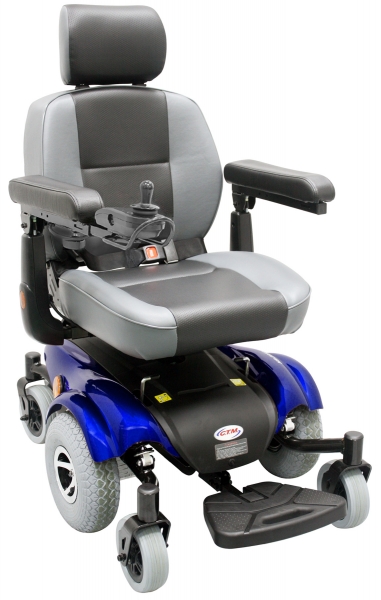

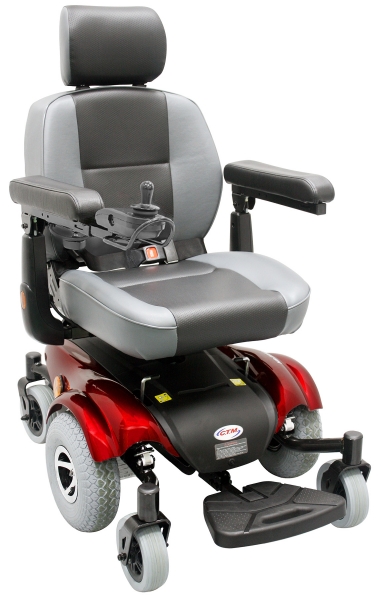

HS-2850 Compact Mid-Wheel Drive Power Chair
.jpg "Compact Mid-Wheel Drive Power Chair")
.jpg "Compact Mid-Wheel Drive Power Chair")
.jpg "Compact Mid-Wheel Drive Power Chair")
Maximum Speed : 6.7 kmph / 4.2 mph
Capacity : 136 kgs / 300 lbs
-
Length Adjustable Joystick
-
Strong and Responsive Front & Rear Casters
-
Optional Swing-away Joystick
-
Optional Elevating Legrests
Color
Features

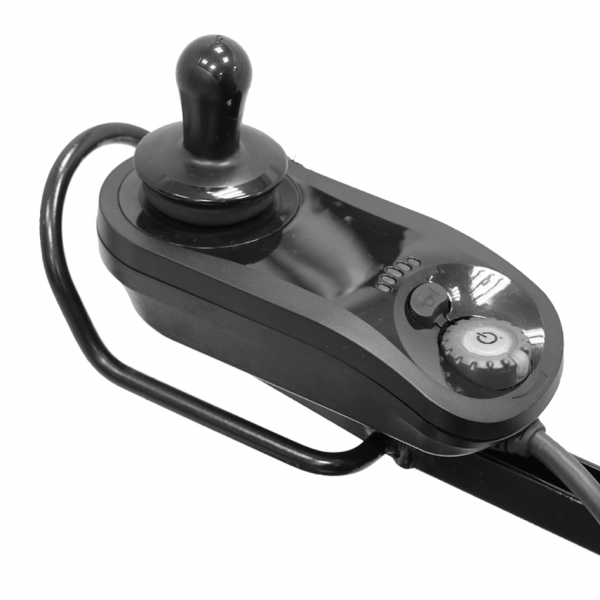

LED Smart Joystick

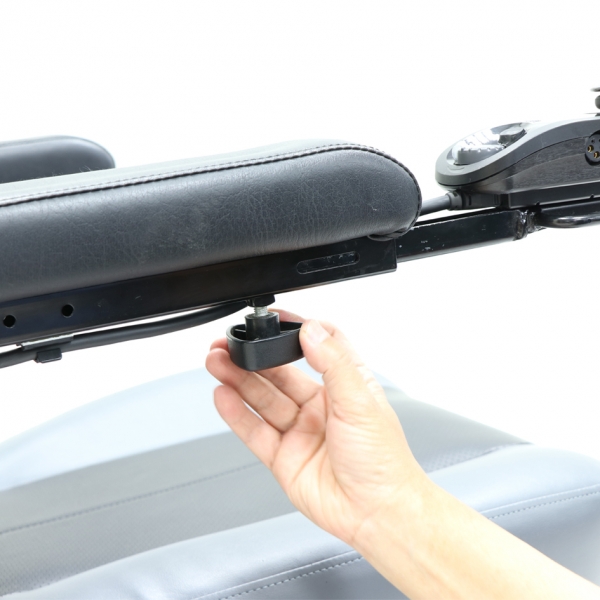

Front / Back Adjustable Joystick

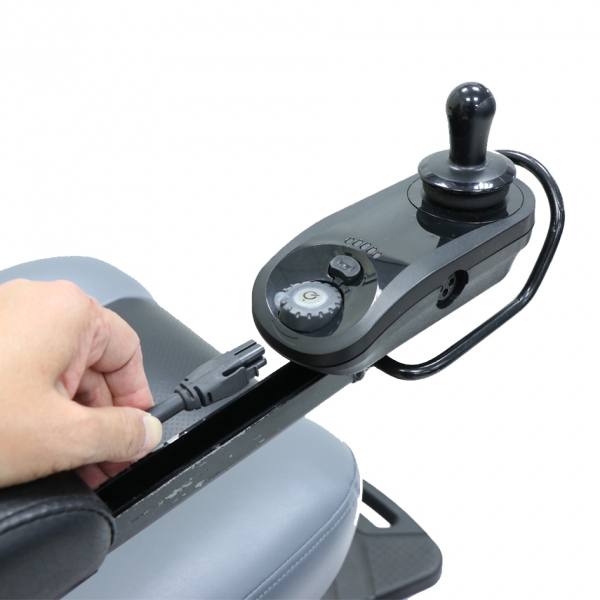

Left / Right Switchable Joystick

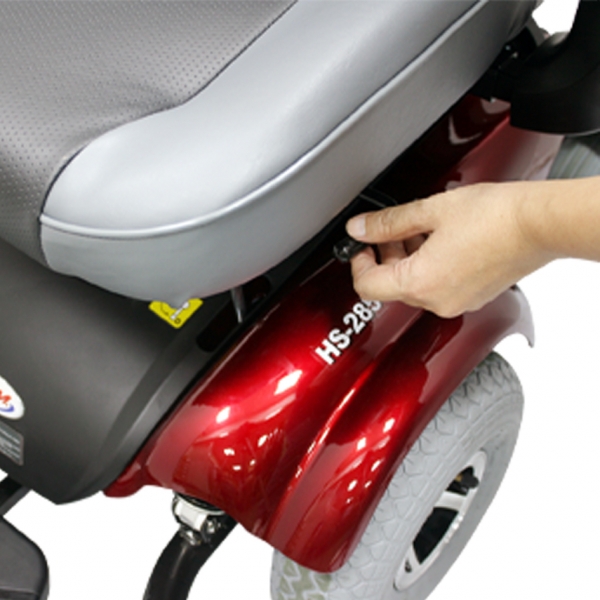

Revolving Seat Lever

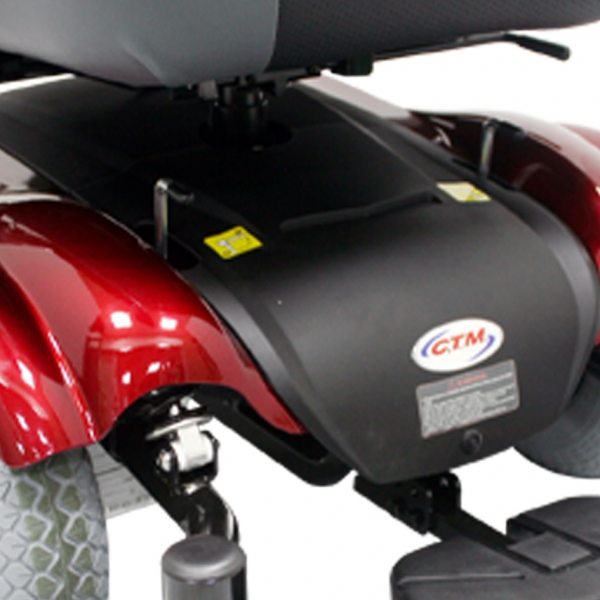

ND Gear Shifting Device

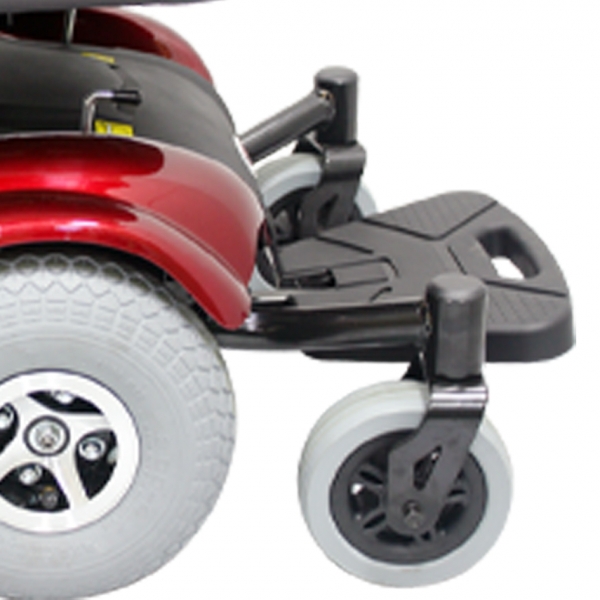

Adjustable Footrests
Overall Length
995 mm / 39"
Overall Width
610 mm / 24"
Overall Height
1080 mm / 42.5"
Front Wheels
155 mm / 6"
Middle Wheels
260 mm / 10"
Rear Wheels
155 mm / 6"
Weight W/ Batteries
82 kgs / 181 lbs
Max. Speed
6.7 kmph / 4.2 mph
Weight Capacity
136 kgs / 300 lbs
Ground Clearance
60 mm / 2.4"
Grade Climbable
6 degree
Curb Climbable
45 mm / 1.8"
Turning Radius
620 mm / 24.4"
Suspension
Front, Rear & Center
Brake
Electro-mechanical
Seat Type
Swivel Mid-Back W/ Headrest, Adjustable Seat Height, & Seat Belt
Seat Depth
458 mm / 18"
Armrest Height
240 mm / 9.5"
Seat Back Angle
102 degree
Seat Height
630 mm / 24.8"
Seat Width
490 mm / 19"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4900 r.p.m
Battery Size
(2) 12V. 36Ah
Weight of Battery
22.5 kgs / 49.6 lbs
Travel Range
20 km / 12.4 mi
Battery Charger
5A Off Board
*Subject to change without notice.
