HS-2850-Rehab-Seat Compact Mid-Wheel Drive Power Chair

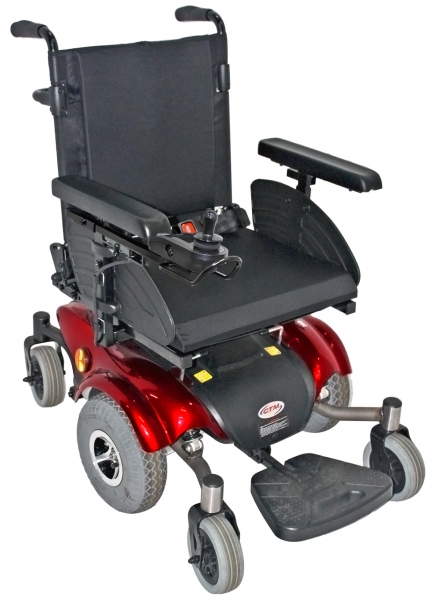

/HS-2850RS(M).jpg "Compact Mid-Wheel Drive Power Chair")

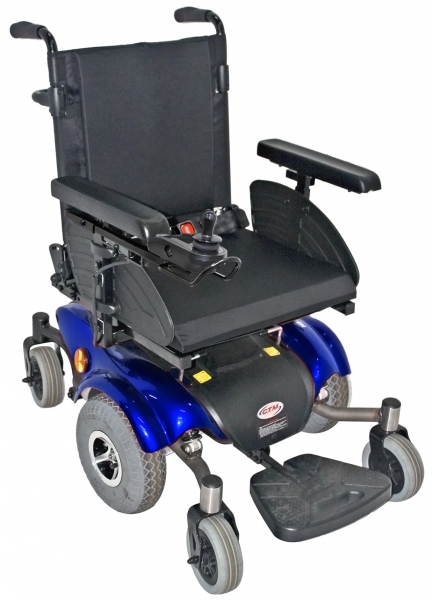

/HS-2850RS(C).jpg "Compact Mid-Wheel Drive Power Chair")

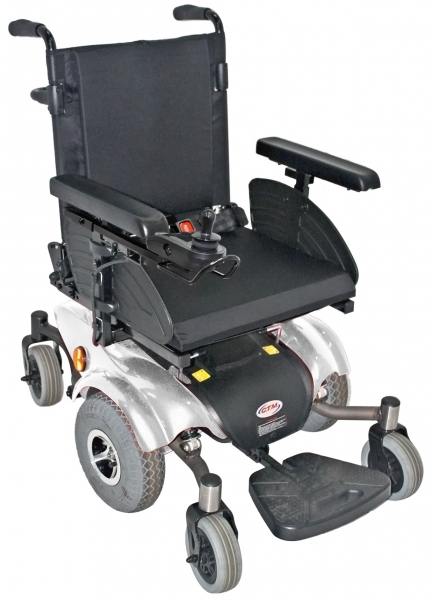

/HS-2850RS(B).jpg "Compact Mid-Wheel Drive Power Chair")
Maximum Speed : 6.7 kmph / 4.2 mph
Capacity : 136 kgs / 300 lbs
-
Length Adjustable Joystick
-
Strong and Responsive Front & Rear Casters
-
Optional Swing-away Joystick
-
Optional Elevating Legrests
Color
Features
/image1.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

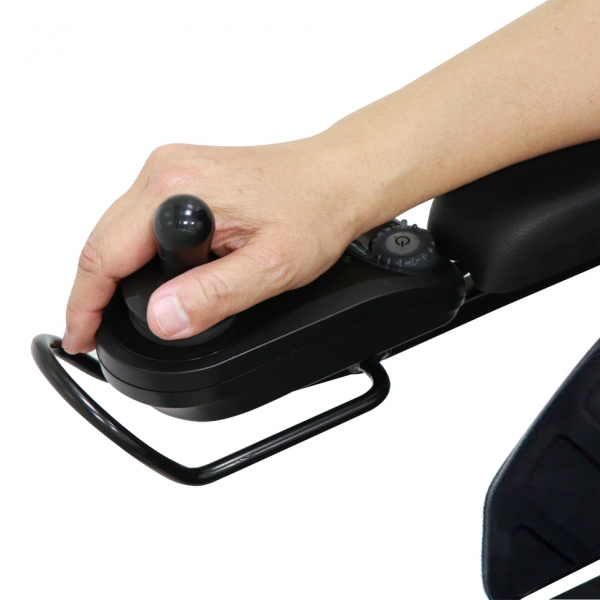

360 Rotatable Joystick

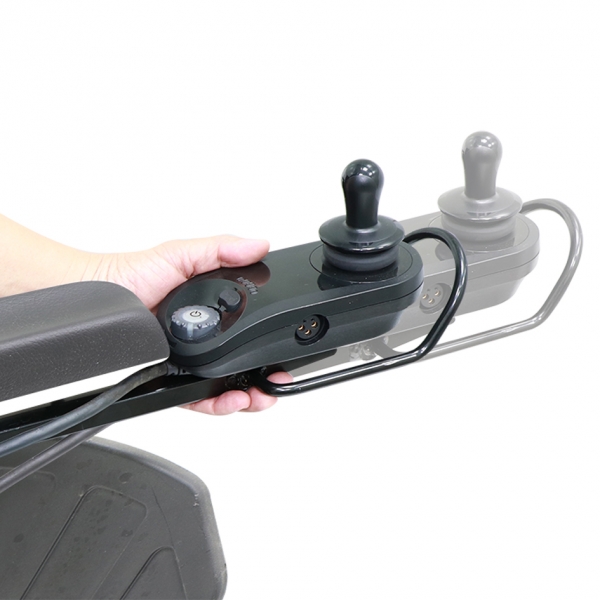

/image2.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

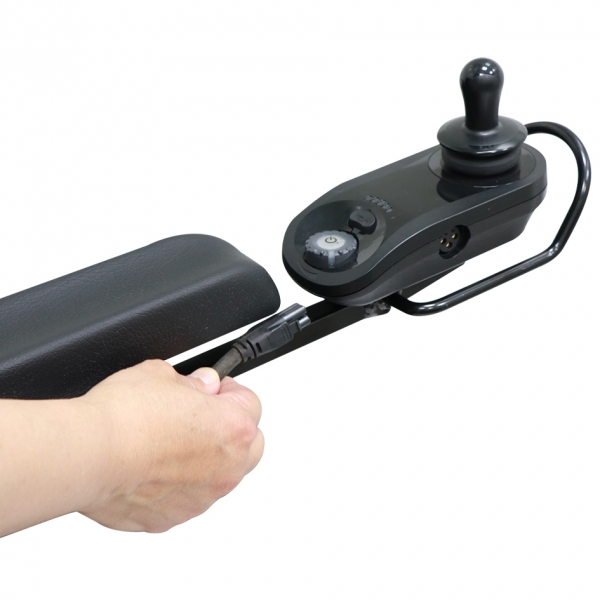

Patent Joystick Retraction Mechanism
/image3.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")
Left / Right Switchable
/image4.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

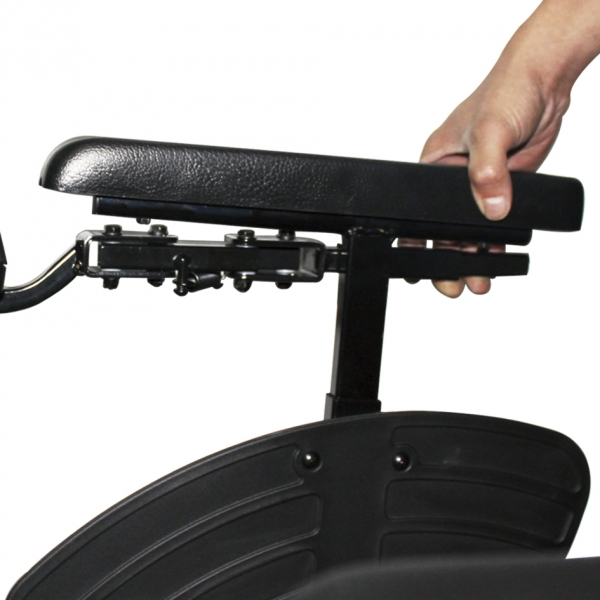

Adjustable Armrests

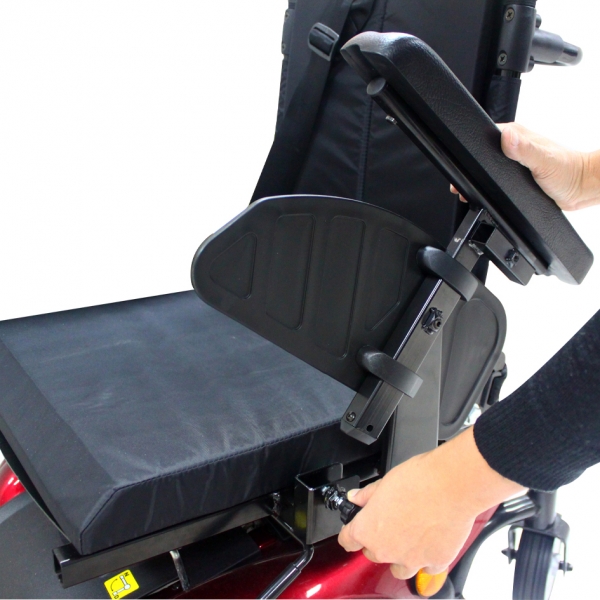

/image5.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

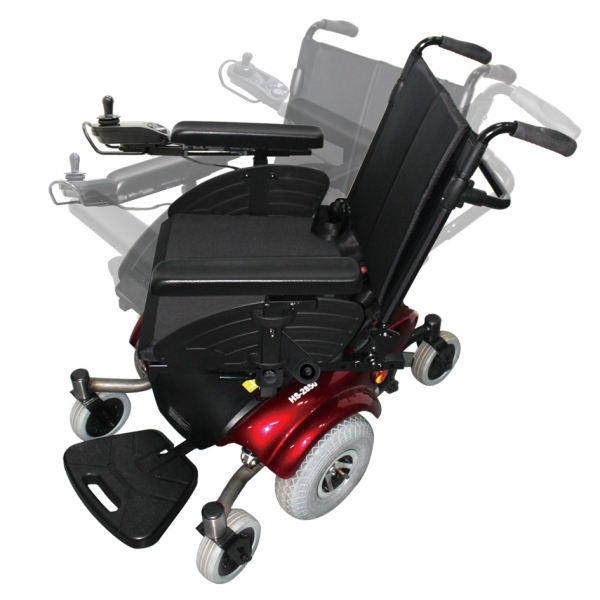

Flip-Up Armrests
/image6.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

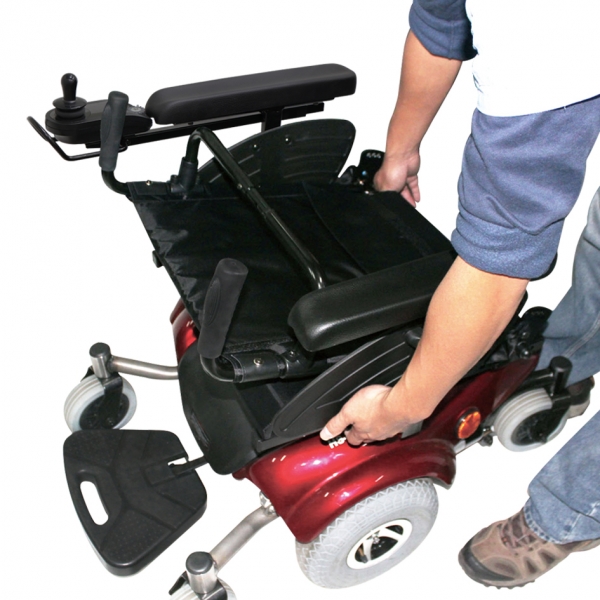

Rotatable Padded Nylon Seat With Seatbelt
/image7.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")
Tool-Free Quick Release System
/image8.jpg "Multi-Adj. Seat;Fixed Frame Power Chair")

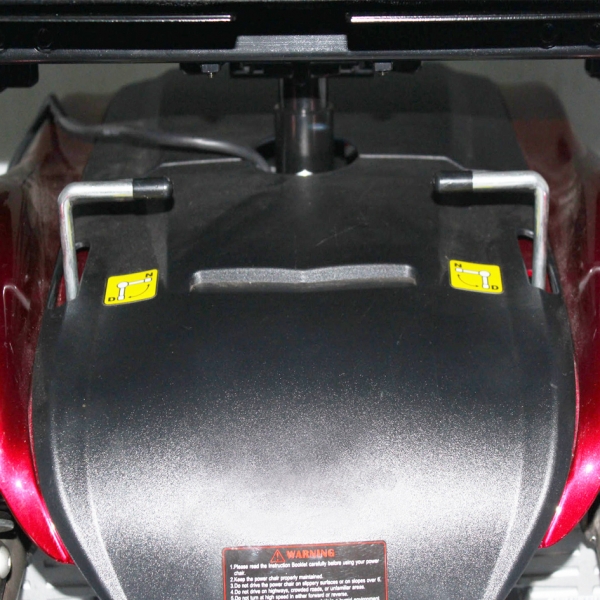

ND Gear Shifting Device
Overall Length
995 mm / 39"
Overall Width
610 mm / 24"
Overall Height
930 mm / 36.6"
Front Wheels
155 mm / 6"
Middle Wheels
260 mm / 10"
Rear Wheels
155 mm / 6"
Weight W/ Batteries
80 kgs / 176 lbs
Max. Speed
6.7 kmph / 4.2 mph
Weight Capacity
136 kgs / 300 lbs
Ground Clearance
60 mm / 2.4"
Grade Climbable
6 degree
Curb Climbable
45 mm / 1.8"
Turning Radius
620 mm / 24.4"
Suspension
Front, Rear & Center
Brake
Electro-mechanical
Seat Type
Padded Breathable Ballistic Nylon Back Rest, Adjustable Seat Height, W/ Adjustable Back Angle & Seat Belt
Seat Depth
450 ~ 475 ~ 500 mm / 17.7" ~ 18.7" ~ 19.6"
Armrest Height
225 ~ 250 ~ 270 mm / 8.9" ~ 9.8" ~ 10.6"
Seat Back Angle
100 degree ~ 120 degree
Seat Height
445 mm / 17.5"
Seat Width
420~470 mm / 16.5"~18.5"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4900 r.p.m
Battery Size
(2) 12V. 36Ah
Weight of Battery
22.5 kgs / 49.6 lbs
Travel Range
20 km / 12.4 mi
Battery Charger
5A Off Board
*Subject to change without notice.
