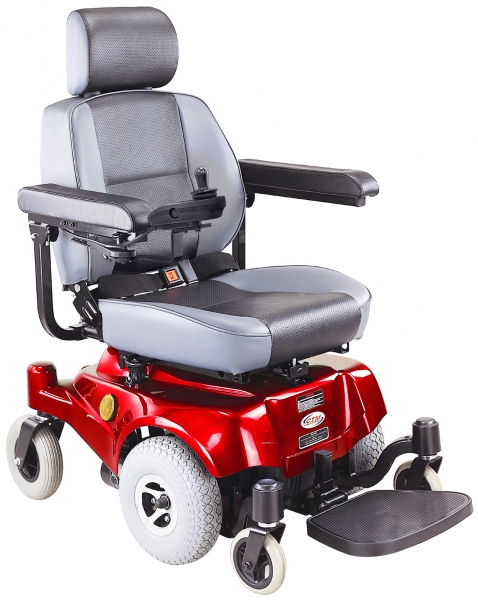

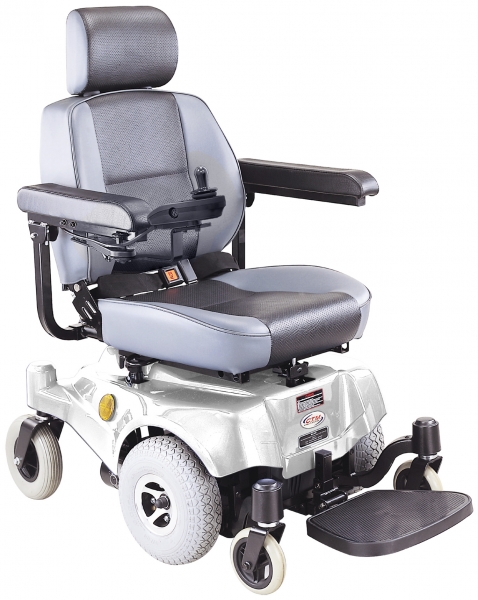

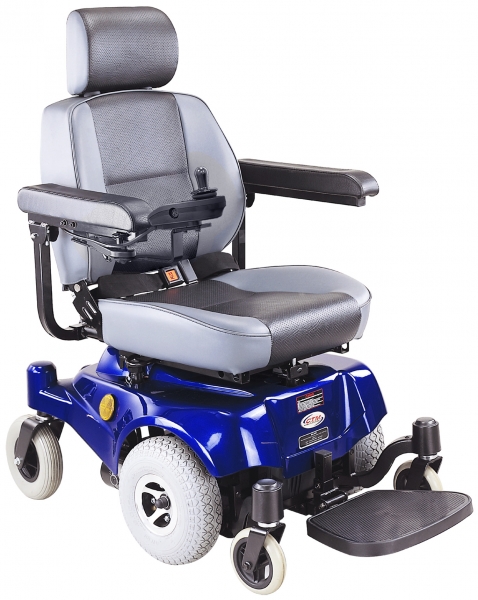

HS-2800 Compact Mid-Wheel Drive Power Chair
.jpg "Compact Mid-Wheel Drive Power Chair")
.jpg "Compact Mid-Wheel Drive Power Chair")
.jpg "Compact Mid-Wheel Drive Power Chair")
Maximum Speed : 6.5 kmph / 4 mph
Capacity : 135 kgs / 300 lbs
-
Swing-away Joystick
-
Effortless Single Free Wheel Lever
-
Strong & Responsive Casters
-
Vertical & Horizontsl Adjustable Footplate
-
Optional Elevating Legrests
Color
Features
Left / Right Switchable Joystick
360 Rotatable Joystick
Flip-Up Seat
ND Gear Shifting Device
5" Front Wheels
PU Grey Tires
Overall Length
1055 mm / 41.5"
Overall Width
600 mm / 24" (Armrest Width)
Overall Height
1060 mm / 41.7"
Front Wheels
130 mm / 5"
Middle Wheels
260 mm / 10"
Rear Wheels
190 mm / 8"
Weight W/ Batteries
93.5 kgs / 206.1 lbs
Max. Speed
6.5 kmph / 4 mph
Weight Capacity
135 kgs / 300 lbs
Ground Clearance
65 mm / 2.6"
Grade Climbable
8 degree
Curb Climbable
50 mm / 2"
Turning Radius
570 mm / 22.4"
Suspension
Center
Brake
Electro-mechanical
Seat Type
Mid-Back W/ Headrest, Adjustable Seat Height, & Seat Belt
Seat Depth
485 mm / 19"
Armrest Height
220 mm / 8.7"
Seat Back Angle
90 ~ 99.5 degree
Seat Back Height
600 mm / 24"
Seat Width
490 mm / 19"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m
Battery Size
(2) 12V. 36Ah
Weight of Battery
22.5 kgs / 49.6 lbs
Travel Range
23 km / 14.3 mi
Battery Charger
3A Off Board
*Subject to change without notice.
