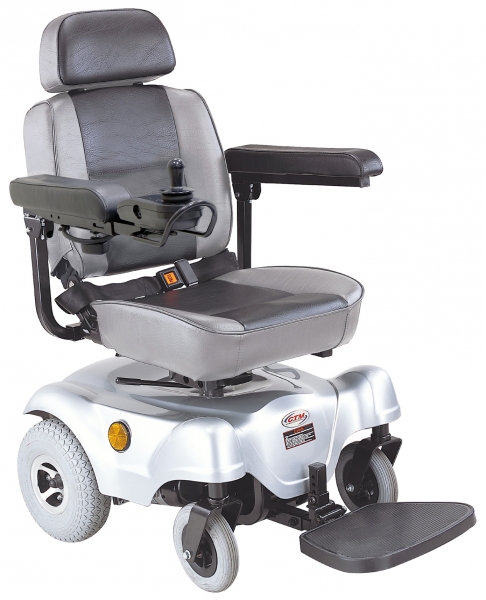

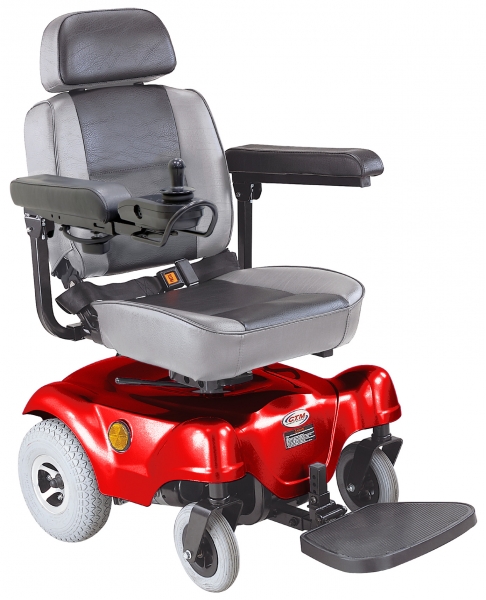

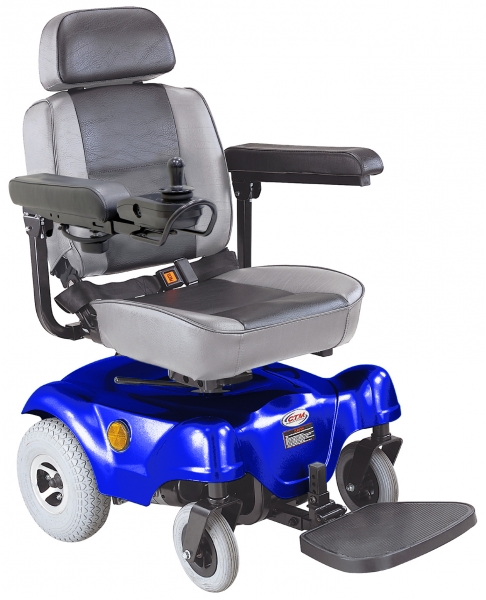

HS-1000 Compact Rear-Wheel Drive Power Chair
.jpg "Compact Rear-Wheel Drive Power Chair")
.jpg "Compact Rear-Wheel Drive Power Chair")
.jpg "Compact Rear-Wheel Drive Power Chair")
Maximum Speed : 6.5 kmph / 4 mph
Capacity : 135 kgs / 300 lbs
-
Swing-away Joystick
-
Vertical Adjustable Footplate
-
Optional Elevating Legrests
Color
Features
LED Smart Joystick
ND Gear Shifting Device
Adjustable Footrests
Overall Length
953 mm / 37.5"
Overall Width
600 mm / 24" (between Armrests)
Overall Height
1020 mm / 40.2"
Front Wheels
175 mm / 7"
Middle Wheels
N/A
Rear Wheels
260 mm / 10"
Weight W/ Batteries
80.2 kgs / 176.8 lbs
Max. Speed
6.5 kmph / 4 mph
Weight Capacity
135 kgs / 300 lbs
Ground Clearance
60 mm / 2.4"
Grade Climbable
8 degree
Curb Climbable
50 mm / 2"
Turning Radius
805 mm / 31.7"
Suspension
Rear
Brake
Electro-mechanical
Seat Type
Swivel Mid-back W/ Headrest, Adjustable Seat Height, Back Angle Adjustment & Seat Belt
Seat Depth
432 mm / 17"
Armrest Height
235 mm / 8"
Seat Back Angle
90 ~ 99.5 degree
Seat Back Height
450 mm / 17.7"
Seat Width
460 mm / 18"
Drive Train
2 Motor, Rear-wheel Drive
Motor Size
420W, 4600 r.p.m
Battery Size
(2) 12V. 36Ah
Weight of Battery
22.5 kgs / 49.6 lbs
Travel Range
24.5 km / 15.2 mi
Battery Charger
3A Off Board
*Subject to change without notice.
影音介紹_標題
iframe
Optional Accessories
